How to test RSSI with T16D transmitter and receivers?
RSSI, or“Received Signal Strength Indicator,”is a measurement of how well your receiver can hear a signal from the transmitter.
When there is control problem of T16D transmitter, such as short control range, signal loss, please test RSSI. It is also recommended to test RSSI before the flight, in order to avoid loss of control due to signal problems.
How to test RSSI with T16D transmitter? I’ll show it with T16D transmitter R16F receiver.
1.Turn on the transmitter and power on the receiver at the same time, and then the transmitter and receiver will be connected(Because I have already bound the receiver to the transmitter). The signal tower appears on the upper right corner of the screen of T16D, indicating that the binding is successful (Note: If there is no signal tower on the screen, please bind the receiver to the transmitter until the signal tower appears on the screen).
After successful binding, RSSI can be seen on the home screen. The RSSI value will keep changing according to the distance between the transmitter and the receiver.

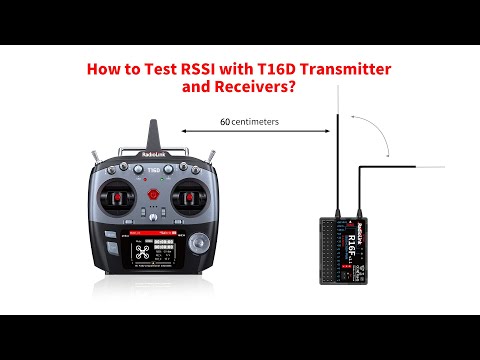

2.keep the two antennas of R16F at a 90-degree angle. Make the receiver antenna and transmitter receiver parallel. (The receiver antenna can be placed like this) Keep transmitter apart from receiver about 60 centimeters. Then check RSSI value. (For receivers with one antenna, keep transmitter apart from receiver about 30 centimeters)
It is normal that RSSI value is within the range of 0 to -30dBm when the distance between the transmitter and receiver is 60 centimeters . The closer the value is to 0, the stronger the signal is.
The range of RSSI value of RadioLink transmitters is from 0 to -99dBm. The larger the absolute value of the RSSI value is, the weaker the signal is. For example, the signal when the RSSI value is -80dBm is weaker than the signal when the RSSI value is -60dBm.
If the RSSI value is not within the range of 0 to -30dBm in about 60 cemtimeters distance, there is something wrong with the signal transmission. Please check whether the antennas of the receiver and transmitter are damaged, especially the transparent part in the top of the antenna. Most signal degradation is caused by receiver antenna damage. If the receiver antenna is damaged, it needs to be replaced. (All accessories of RadioLink products are available in Radiolink Official Store on AliExpress, so antenna is available in Radiolink Official Store) If there is no damage, you can test whether it is the failure of the transmitter or the receiver by replacing the receiver.
Note: All accessories of RadioLink products are available
in Radiolink Official Store on AliExpress:
radiolink.aliexpress.com/store/4714037
For more details of T16D, please refer to the link:
radiolink.com/t16d
If any question about RadioLink products please feel free to contact us. Our email is: after_service@radiolink.com.cn
