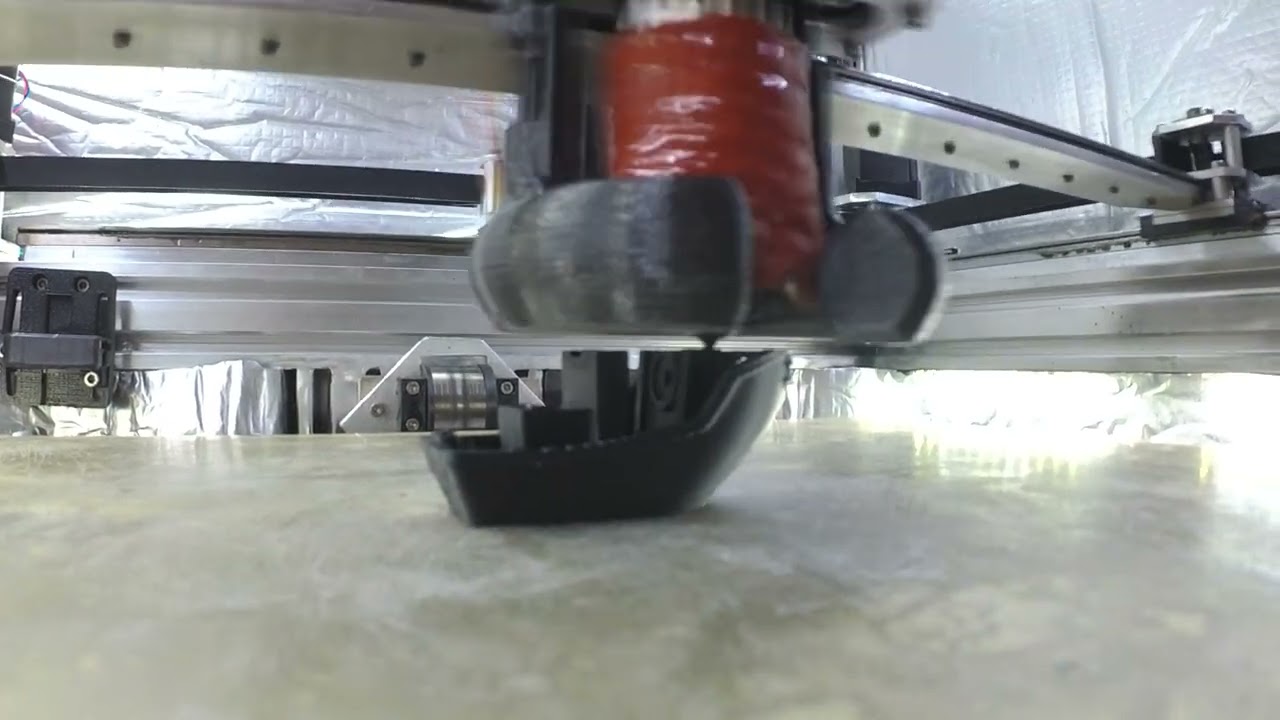

Tuning 5 minute benchy using UFO-N-ATOR, with typical Benchy rules
Can this level of quality be beat with less time? - is this a call-out? Could be? Curious what is better out there in terms of quality.
I am on the cusp of not enough cooling(some areas show hints of cooling issue). I may need to hook up the high RPM blower and see if I can drop it down a little more, but it's not gonna move much from here.
To me, this Benchy is ~80%-85%.
Sunlu ABS 250C, 70K accel, 600mms, 100SCV, 0.5 retraction @ 120mms.
TMC 5160's @ 48V, 2504 LDO motors, Octopus Pro 1.1, Chube hotend, UFO-N-ATOR cooling duct (thingiverse.com/thing:6779529).
VZhextrudort using straight gears and brass bull gear. Still using the LDO 17mm wide extruder motor @48V(.5A motor).
310x300x425 build volume using MGN12H carriages everywhere. 1470 grams moving mass (toolhead + carriages + rails + backers)
