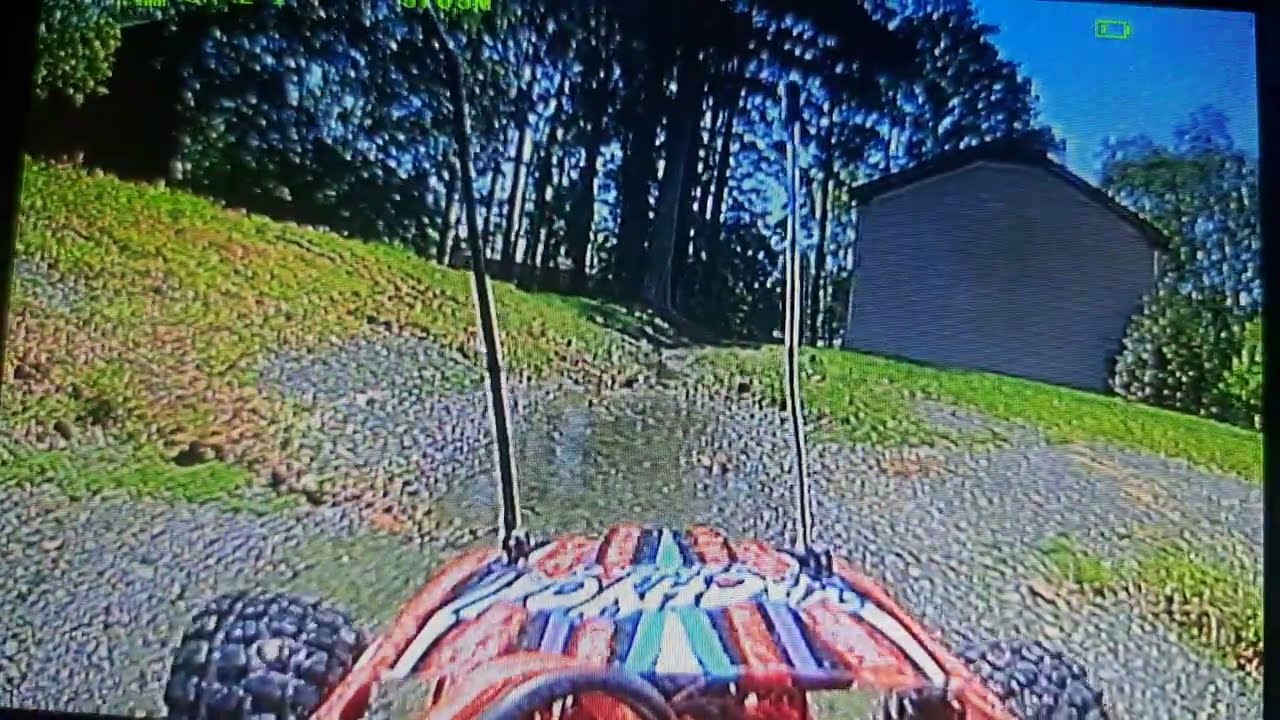

I had to record the FPV screen with my phone and it resulted in some annoying artifacts that make it almost unbearable, but the interference at any given time can at least be seen. Been stuck on trying to improve the quality/range with the analog systems for the past weeks. Tried various layouts/transmitters/receivers/antennas etc. Still not satisfied as it seems like I should be able to get much better range with 1.3ghz. I was able to tweak my "Partom" units to perfect clear quality within a small range, but that quality dropped off fast just going a little further out even with LOS. I ditched 2 of those test units and went to RMRC to what seemed like less quality.. but I noticed I could actually go farther out. Quality was still bad after a certain range but I could still potentially navigate much further if I had to. In the air I imagine I could get some pretty good range. On the ground I'm still just trying to be able to circle the adjacent buildings in my neighborhood without a horrible signal. The frustrating thing about all this testing is that I can toss a powerful 5.8g tx on my smaller car and drive it around nearly the same distances, with much less overall stuff required, but I run the risk of losing total visibility at any random time much more easily.
That's why for driving around an office/home/yard or even some wide open area with decent LOS 5.8ghz seems pretty ideal. 1.3ghz with all the right accessories can be a huge improvement but for me it's barely been just enough to justify the effort.
One downside is that it's basically impossible today to find 1.3ghz diversity boxes which allow multiple receivers/antennas to be used simultaneously, where the diversity system instantly switches between whatever has the strongest signal at the time.
Right now I'm using:
DEERC 210E
1.3ghz RMRC transmitter/receiver + dipole and crosshair extreme v2
2.4ghz Radiolink RC6GS+7 channel receiver w/telemetry
5.8ghz transmitter (1.3g AV output to 5.8g for goggles/screen)
5.8ghz goggles/FPV screen w/diversity
2-axis Front cam (Caddx Ant)
Fixed Rear cam (Caddx Ant)
Electret mic+amp
Front led XHP70
Articulating led (flashlight that moves with camera)
After enough confirmation that I'm not doing something wrong with the wiring or layout, and having tried multiple 5.8ghz and 1.3ghz units.. I get the impression I would need to really improve my receiver antenna setup to get any better performance in the neighborhood. In an open area with LOS or maybe just woods I could probably go pretty far. Right now if I tried to circle the neighborhood I would probably be able to do it, but outside of a couple hundred feet or so the video would be so bad it just wouldn't be comfortable or entertaining. I'm going to try digital also but I haven't found a way to have a front/rear cam setup + audio with any digital system.
