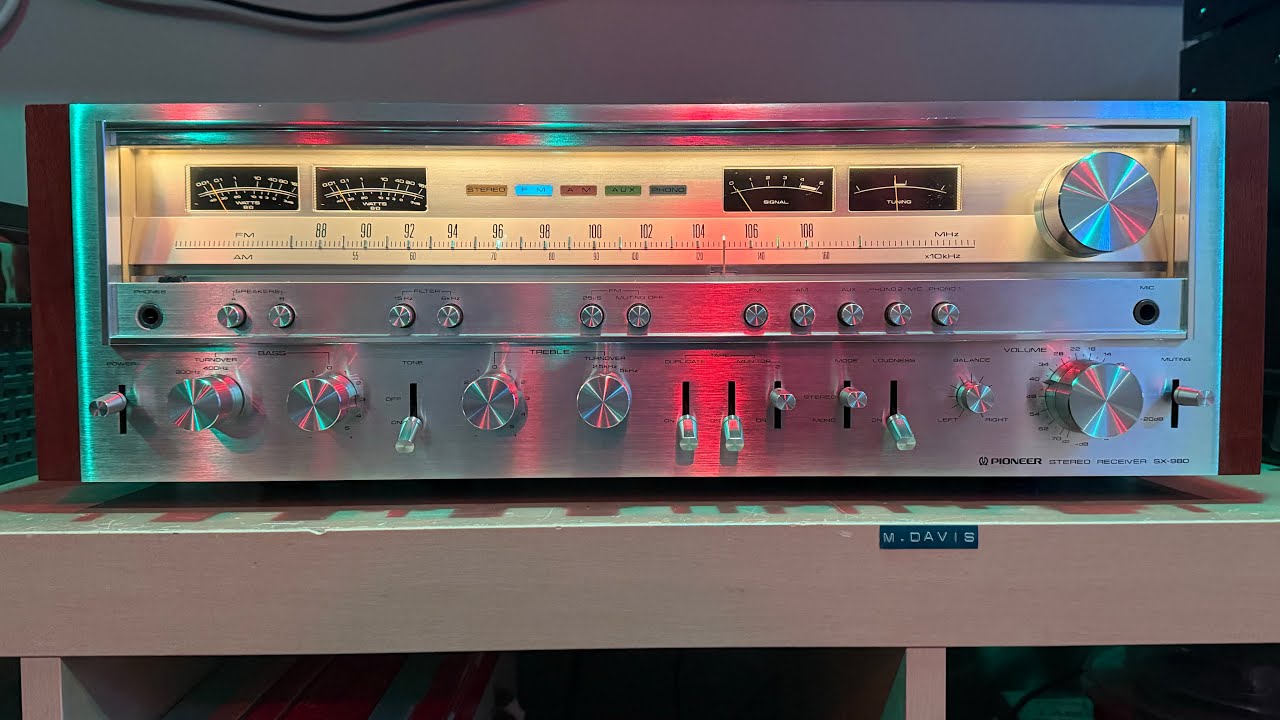

OK, this was my first Pioneer silver monster from the 70s. Purchased 4 years ago and has been in rotation occasionally. Rebiased and cleaned out after purchase, but always had a “brilliance” tone issue.
Let me explain. When powered on cold, the tone had little variability and the sound was lifeless. After being on for about 20 minutes, it would “warm up” and start to sound good. By the end of the night and perhaps after a couple beers, it sounded great!!
4 years later tonight and after a lot of learned experience in this space, I cracked it open and looked at the power supply. 6 capacitors adjacent to hot power regulators had shrunken wrappers. Replaced these. Secondly, I removed the 2 driver boards and replaced two caps on each channel.
All caps were generally 25% over spec and had a higher ESR than normal. The orange bi-polar caps on the driver cards measured 13 & 14 ohms, and I’m 99% sure these pass audio into the amp.
Also reflowed quite a few solder joints especially where hot resistors and voltage regulators were present.
After the replacements about 30 minutes later, I powered it on my bench and the protection circuit clicked in and audio came out sounding good.
Then hooked it up tonight to my Realistic Mach Ones in my audition space. It is singing and sounding brilliant and solid, and I truly feel I fixed the issue it had.
I’m a self taught hobbiest, but I highly suspect that the power supply was not putting out the proper voltage and current into the tone circuit until the unit was on for a little bit. And I suspect the amp was being starved of audio from those orange caps, which had high resistance, which probably got better after power was applied for a while.
The purists will say recap everything. And there are definitely probably 12 transistors in this unit that should be upgraded to a modern equivalent. Also, the tone circuit probably should be completely recapped.
And I’ve done those shotgun replacements before, but tonight, I just wanted to make an improvement to prove out my suspections.
I added my notes to a piece of paper and taped it under the wood cover for the future. Perhaps 10-20 years from now I’ll be in here doing more work - or someone else will have this and at least they’ll know what I did to make it good as it is today in March 2026.
Welcome to the Spring season - those in Chicagoland like myself really need this warm weather!
