In this shader tutorial, I show the additional steps required to do triplanar projection with normal maps in Unreal and Unity. This method works correctly even when the mesh's UVs are flipped, rotated, or mirrored. It's a little complicated, but the results look great and work great too!

Here are each of the videos in our triplanar series so far:
26 - youtu.be/Rm4ubzc-6Q4 - texture projection
27 - youtu.be/HKSIxFnsHuk - direction masks
28 - youtu.be/sjpszGetM40 - basic triplanar projection
29 - youtu.be/tsE7Tqlv8DQ - triplanar projection improvements

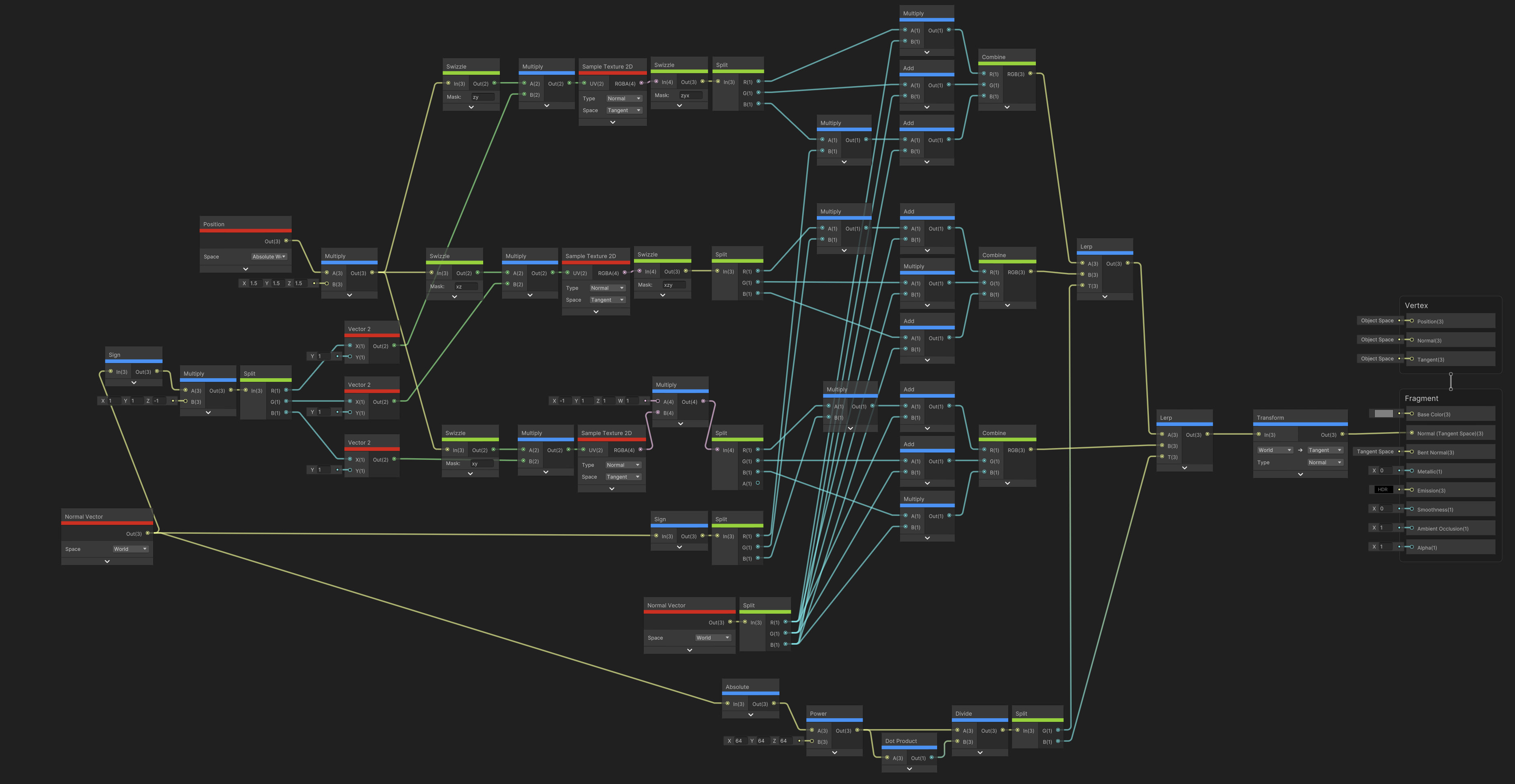

Screen shot of the Triplanar Normals graph in Unity:
bencloward.com/youtube/triplanar_normals_unity.jpg

Unity Triplanar Normals Graph file (Unity 2022.1.b2):
(To download this assets, please right-click on the link and choose "save link as...", then select a location for the file.)
bencloward.com/youtube/TriplanarNormals.shadergraph

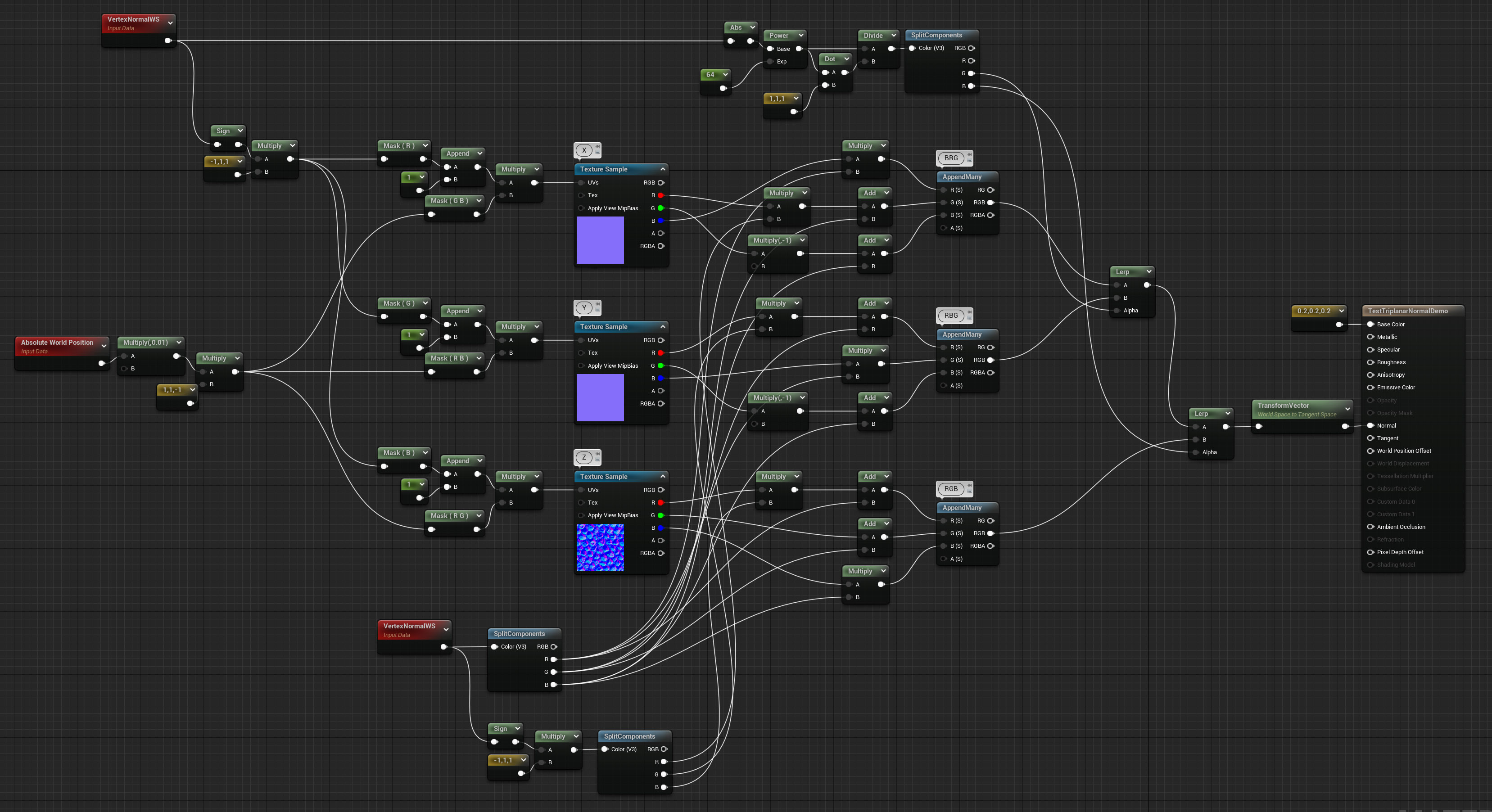

Screen shot of the Triplanar Normals graph in Unreal:
bencloward.com/youtube/triplanar_normals_unreal.jpg

Unreal Triplanar Normals Material file (Unreal 5):
(To download this assets, please right-click on the link and choose "save link as...", then select a location for the file. If Chrome tells you it can's download the file securely, click the up arrow icon and select "Keep")
bencloward.com/youtube/TriplanarNormal.uasset

And here's the playlist for the whole series:
youtube.com/playlist?list=PL78XDi0TS4lEBWa2Hpzg2SRC5njCcKydl
