Uploaded November 2025 | Updated September 2026, 3 weeks ago
STMicroelectronics, WURTH Elektronik and Element14 have created a Special Project which comprises an STMicroelectronics Motor Control Evaluation kit.
This comprises the following modules
EVLSPIN32G4-ACT Motor control Evaluation Board
STLINK-V3SET Programmer/debugger
STEVAL-STWINBX1, STWIN.box - SensorTile Wireless Industrial Node Development Kit
STEVAL-C34KAT1 Vibrometer and temperature sensor expansion kit
Multicomp MP710256 power supply
DB59M024035 BLDC motor from Nanotek

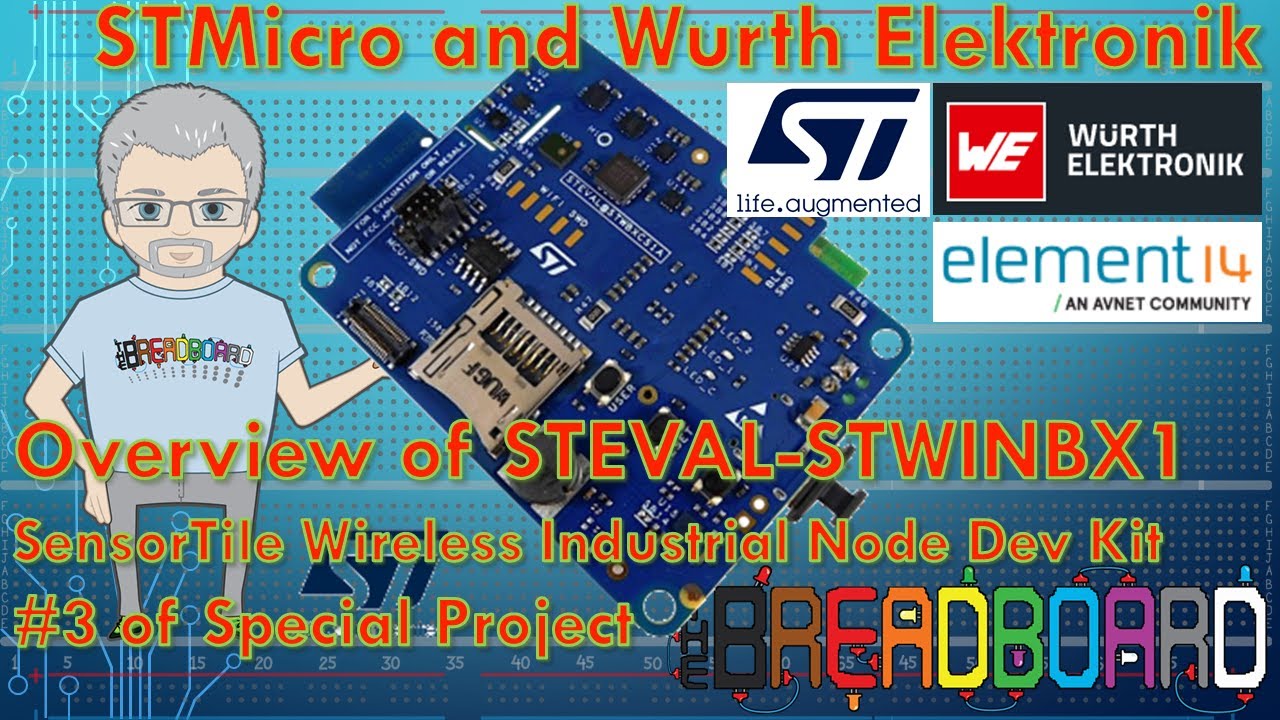

The STEVAL-STWINBX1 SensorTile Wireless Industrial Node Development Kit is what we will look at in this video both hardware and required software.
The modules provided are all you need aside from free downloaded software and a suitable PC running Windows, Linux or MAC to evaluate the EVLSPIN32G4-ACT Motor control Board.
The video and documents referenced are here:-
github.com/STMicroelectronics/stdatalog-pysdk
st.com/resource/en/application_presentation/stdatalog-pysdk-quick-start-guide.pdf
st.com/en/embedded-software/stdatalog-pysdk.html
github.com/STMicroelectronics/fp-sns-datalog2/tree/v3.1.0
st.com/en/evaluation-tools/steval-stwinbx1.html
st.com/resource/en/user_manual/um2965-getting-started-with-the-stevalstwinbx1-sensortile-wireless-industrial-node-development-kit-stmicroelectronics.pdf
This video looks at the sensor devices on the evaluation board and what software is needed, that being the STM32CubeProgrammer (We are running pre canned demo software).
The STDATALOG-PYSDK a comprehensive Python framework designed to facilitate the capture, processing, and visualization of data from a wide range of sources
There will be several videos to follow looking at each hardware stage of the tool chain so "Programmer" - Industrial Sensor Board" - "Motor Control Board" and finally the Sensor extension board.
I will also be looking at the Wurth Components used on the EVLSPIN32G4-ACT Motor control with regard to fit for purpose in this design and then overall sense of quality for all modules as well as ease of use.
I will add links to the other videos and descriptions as I go so stay tuned.
