Uploaded July 2021 | Updated September 2026, 1 week ago

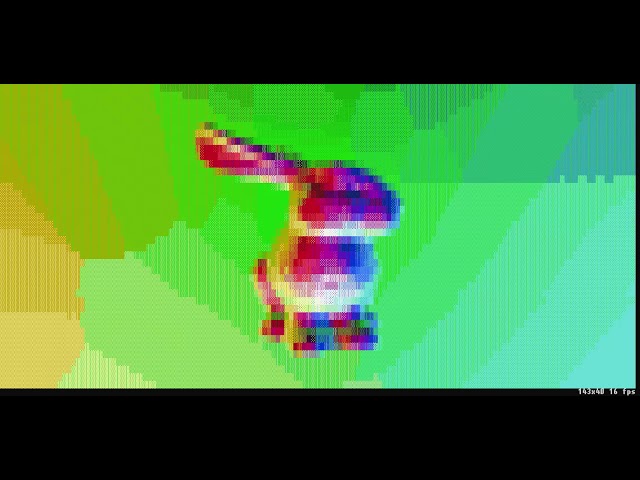

This is my real time OpenCL RayTracer running in the Windows 10 command prompt. With 3 levels of shading and 16 raw colors I get 616 dithered colors at 143x40 resolution. This comes at loss of vertical resolution doubling.
Video without dithering and with 2 vertical pixels per character with ASCII block characters: youtu.be/haufblzQMcM
The shiny Stanford bunny has almost as many triangles (4968) as there are characters (5720) in the #terminal. With a HSV color map as skybox the 16 colors really come into play. Works in both Windows/Linux and over SSH with the Linux Subsystem for Windows (WSL).
This is my real time OpenCL RayTracer running in the Windows 10 command prompt. With 3 levels of shading and 16 raw colors I get 616 dithered colors at 143x40 resolution. This comes at loss of vertical resolution doubling.
Video without dithering and with 2 vertical pixels per character with ASCII block characters: youtu.be/haufblzQMcM
The shiny Stanford bunny has almost as many triangles (4968) as there are characters (5720) in the #terminal. With a HSV color map as skybox the 16 colors really come into play. Works in both Windows/Linux and over SSH with the Linux Subsystem for Windows (WSL).
![PhysX3D [GRAVITY SIMULATION] 5k body galaxy simulated in real time](https://i.ytimg.com/vi/j4kejlWBVwA/mqdefault.jpg "PhysX3D [GRAVITY SIMULATION] 5k body galaxy simulated in real time
PhysX3D got upgrades. I changed the square root implementation to the fast inverse square root algorithm provided by the aparapi Kernel. With this, y=1/sqrt(x) is calculated as fast as a multuplication, resulting in 7.2x overall performance increase compared to the old square root implementation.
GPU acceleration is now about 50x faster than CPU multithreading.
A galaxy containing 5k bodies is simulated on a 1.54Tflops notebook GPU (Nvidia GeForce GTX 960M). The GPU achieves 124 calculation steps per second using Runge Kutta 4th order integration in 3D space. Everything was simulated in real time.
In other words, the GPU calculates roughly 3.5 billion particle interactions every second.
More information at: http://www.projectphysx.de
Music: Puddle of Infinity - Open Sea Morning")
![PhysX3D [GRAVITY SIMULATION] Euler vs. RK4 / Sonnensystem im Jahr 3016](https://i.ytimg.com/vi/jr-3WIY9Fmo/mqdefault.jpg "PhysX3D [GRAVITY SIMULATION] Euler vs. RK4 / Sonnensystem im Jahr 3016
Das Einschrittverfahren Runge-Kutta-4 (RK4) ist um Größenordnungen genauer als das einfachere eulersche Polygonzugverfahren. RK4 erlaubt es, auch bei einer hohen Körperanzahl die Simulationsgeschwindigkeit ohne ohne größere Rechenfehler sehr weit hoch zu schrauben.
Mehr Informationen auf: http://www.projectphysx.de
Musik:
Hans Zimmer - Stay (Interstellar Soundtrack)
Hans Zimmer - Day One(Interstellar Soundtrack)")
![SoundFFT [AUDIO SPECTRUM ANALYZER] Music Demo](https://i.ytimg.com/vi/jwZk7DbF3P8/mqdefault.jpg "SoundFFT [AUDIO SPECTRUM ANALYZER] Music Demo
SoundFFT is a fast and accurate spectrum analyzer for live audio signals. It performs a fast Fourier transform (FFT) on the live input signal coming from the computers main microphone. The highest peak is being detected and its center is being calculated to further increase resolution.
Java can only input an audio signal from an audio source like a microphone. So in order to get the audio stream from the computers main speakers, you have to use some kind of workaround. I found the software Virtual Audio Cable to fulfill exactly this purpose.
This demo shows how SoundFFT works with Music.
Interestingly, the laws of physics prevent a more accurate frequency resolution without the spectrum being both more delayed and averaged. The longer the buffer is for the fast Fourier transform, the more accurate the frequency resolution will be and vice versa.
Nevertheless, it is fascinating to be able to see exactly what you hear. Also keep in mind that the human brain automatically Fourier transforms the incoming sound (what you hear is the pitch and not the wave) without you having to waste a single thought about it.
Free download and more information at http://www.projectphysx.de
Music: DROELOE feat. Belle Doron - In Time")
![FluidX3D [FLUID SIMULATION] Some Real Time Demonstrations](https://i.ytimg.com/vi/kpCAaydlzi4/mqdefault.jpg "FluidX3D [FLUID SIMULATION] Some Real Time Demonstrations
FluidX3D is a real time 3D fluid simulation based on the lattice Boltzmann method. It is written in OpenCL (GPU code) and optimized to the physical limit (video memory bandwith, ~500GB/s).
FluidX3D has been completely overhauled, all velocity sets (D2Q9, D3Q13, D3Q15, D3Q19, D3Q27) as well as all collision operators (single relaxation time (SRT), two relaxation time (TRT), multi relaxation time (MRT)) have been added and can be freely combined. In my implementation, neither TRT or MRT have any measurable performance impact since the bottleneck is still the memory bandwidth, capped by the hardware to about 420GB/s on the Titan Xp. The swap algorithm is OS-Pull (fastest algorithm, but not as memory efficient) and the data layout is the faster struct-of arrays (SoA). Ive reached the optimization limit with 2.6 Giga lattice updates per second (GLUPs) for D3Q19 on the Titan Xp.
Ive translated my graphics library Line3D into OpenCL with the Bresenham algorithm for drawing lines on a bitmap. It can handle up to 2 billion lines per second, which is way faster than all other graphics libraries for primitive shapes out there.
For more information about FluidX3D and my other projects, visit
http://www.projectphysx.de
Music: CMA - Youre Not Alone")
![DroneEngine [QUADCOPTER SIMULATION] June Update: control modes](https://i.ytimg.com/vi/kps6_SK4Dw4/mqdefault.jpg "DroneEngine [QUADCOPTER SIMULATION] June Update: control modes
Es geht voran mit der DroneEngine. Ich habe drei unterschiedliche Steueralgorithmen implementiert, die zukünftig die Grundlage für das simulierte Sensor-Feedback bilden werden. Weitere Updates werden folgen.
Song: Ellie Goulding - Lights [LuQuS Remix]")
![PhysX3D [GRAVITY SIMULATION] Planetary Movement through Space](https://i.ytimg.com/vi/llhXEzWEWxI/mqdefault.jpg "PhysX3D [GRAVITY SIMULATION] Planetary Movement through Space
This is how the planets and moons move relative to the solar system barycenter. In a similar way the whole solar system moves around the center of the milky way.
More information at: http://www.projectphysx.de
Music: Chris Zabriskie - Cylinder Three")
