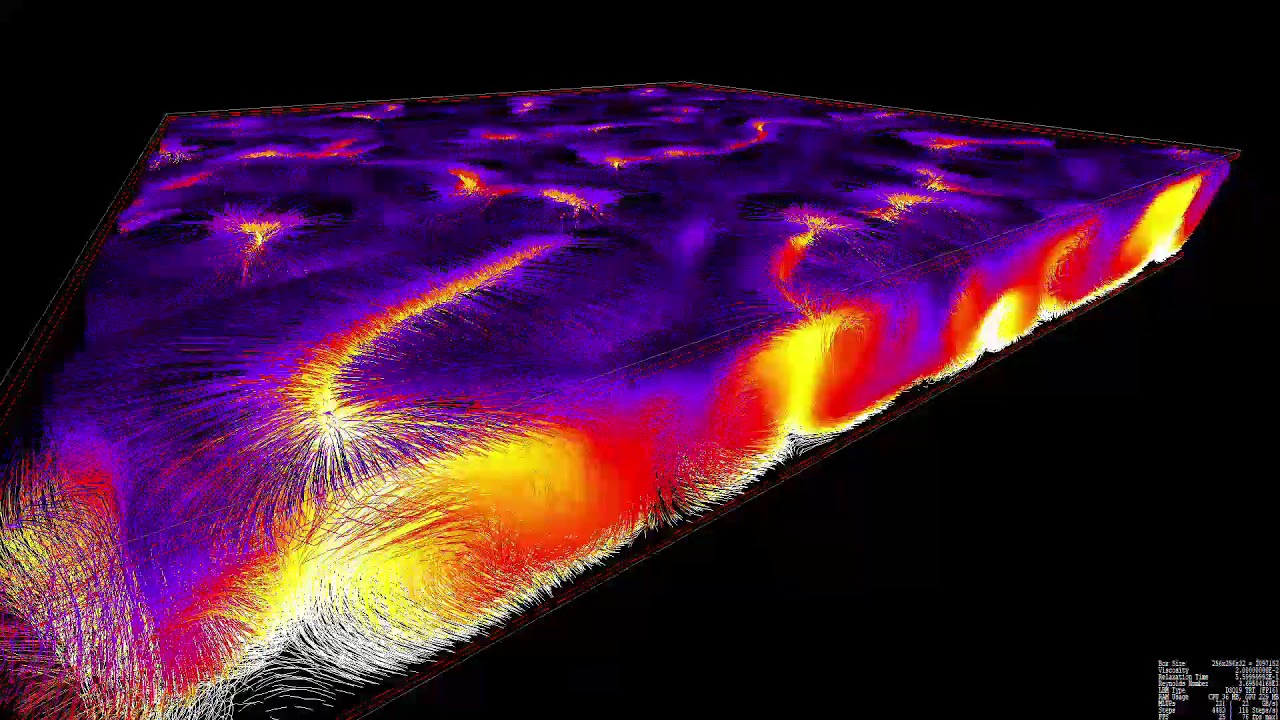

Rayleigh-Bénard convection occurs for example in a hot pan filled with oil or in the Earths mantle, whenever a vertical temperature gradient is present and the parameters like viscosity, thermal conductivity and the thermal expansion coefficient are just right. At the bottom the fluid is heated, expands, becomes less dense and thus rises. When it reaches the cold top plate, it becomes more dense again and sinks to the bottom. In 3D this results in convection cells.
Performing such 3D simulations in real time has not been possible before the rise of GPUs. Traditional LBM codes running on CPUs are approximately 100x slower - far away from real time.
FluidX3D is a real time 3D fluid simulation based using the lattice Boltzmann method. It is written in OpenCL C (GPU code) and optimized to the physical limit (video memory bandwith, ~520GB/s).
All demonstrations but the last one are simulated and visualized in real time on a Nvidia Titan Xp. Graphics are done with the OpenCL C version of Line3D, the fastest graphics engine ever written for primitive shapes like lines, dots and circles. It can handle up to 2 billion lines per second.
The temperature extension is done with an additional D3Q7 sub-lattice and Guo forcing.
Hardware Setup:
CPU: Intel Core i7-8700K @ 4.5GHz all core
GPU: Nvidia Titan Xp
RAM: 2x8GB Corsair Vengeance LPX DDR4 3200MHz CL16
Mainboard: ASUS ROG STRIX Z370-I GAMING
SSD 1: Samsung 970 PRO 512GB
SSD 2: Samsung 860 EVO 1TB
CPU Cooler: Cooltek LP53
PSU: Corsair SF600
Housing: Fractal Design Node 202
Timestamps:
0:02 256x256x128
0:28 256x256x64
0:58 256x256x32
1:29 256x256x16
1:55 256x256x256
More information at projectphysx.de
Music: "Atlantis", audionautix.com/Music/Atlantis.mp3
Rayleigh-Bénard convection occurs for example in a hot pan filled with oil or in the Earths mantle, whenever a vertical temperature gradient is present and the parameters like viscosity, thermal conductivity and the thermal expansion coefficient are just right. At the bottom the fluid is heated, expands, becomes less dense and thus rises. When it reaches the cold top plate, it becomes more dense again and sinks to the bottom. In 3D this results in convection cells.
Performing such 3D simulations in real time has not been possible before the rise of GPUs. Traditional LBM codes running on CPUs are approximately 100x slower - far away from real time.
FluidX3D is a real time 3D fluid simulation based using the lattice Boltzmann method. It is written in OpenCL C (GPU code) and optimized to the physical limit (video memory bandwith, ~520GB/s).
All demonstrations but the last one are simulated and visualized in real time on a Nvidia Titan Xp. Graphics are done with the OpenCL C version of Line3D, the fastest graphics engine ever written for primitive shapes like lines, dots and circles. It can handle up to 2 billion lines per second.
The temperature extension is done with an additional D3Q7 sub-lattice and Guo forcing.
