A much better digital compass than the QST QMC5883L? We’ll see …
↓↓↓ Complete description, time index and links below ↓↓↓
A year ago I made a video series about the QST QMC5883L 3-axis magnetic sensor (links below). As a digital compass it was completely unusable. Now I have a MEMSIC MMC5983MA at hand, which promises to be the best in its class (Hall effect).
I this video we’ll cover the basics: Have a look at the evaluation board I got, a quick squiz into the datasheet, go over an existing library from SparkFun, wire everything up on a breadboard, and finally run two example Arduino sketches.
00:00 Intro – the MMC5983MA, much better than the QMC5883L

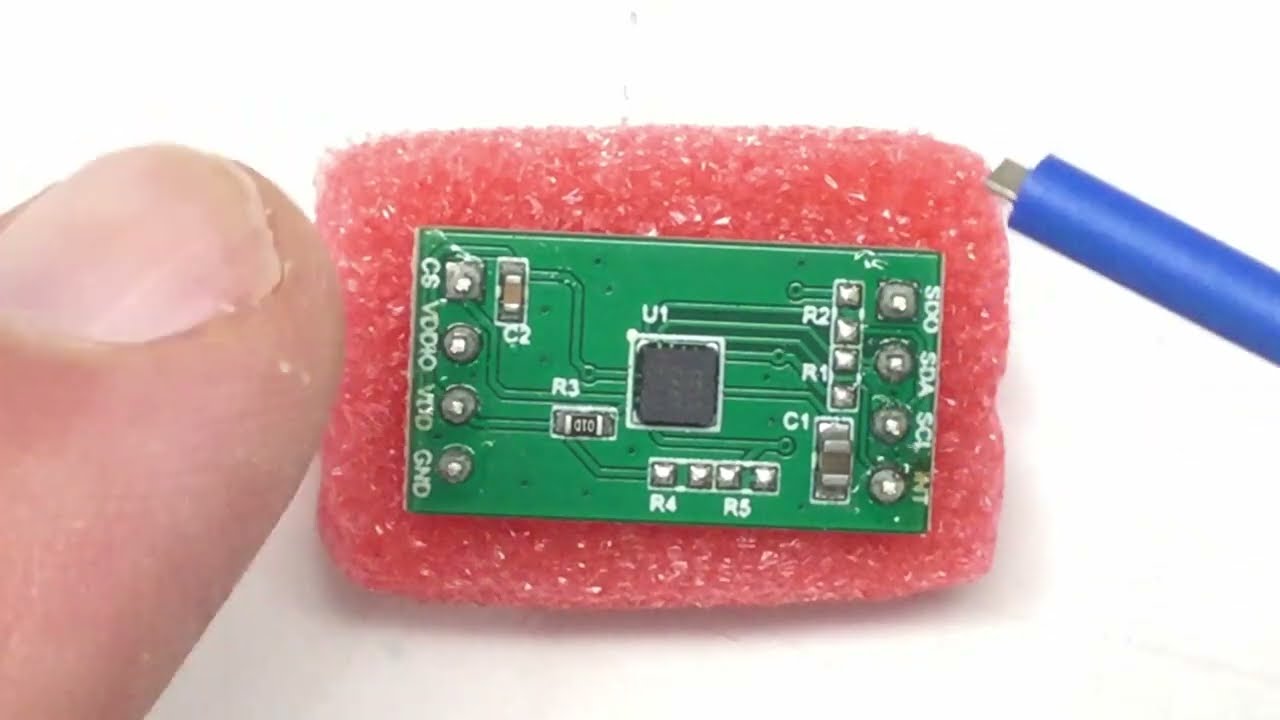

02:14 Evaluation board – the expensive original from MEMSIC
06:15 Datasheet – just an overview of the most important stuff
12:04 Library – there is actually a good one from SparkFun
16:13 Breadboard – wiring it up with an Arduino Nano Every
17:07 Compass demo – within 10° without calibration, 0.2° noise
21:31 Raw data demo – no surprises here, but also very low noise
24:02 Wrap-up – it’s working very well, next up are the details
