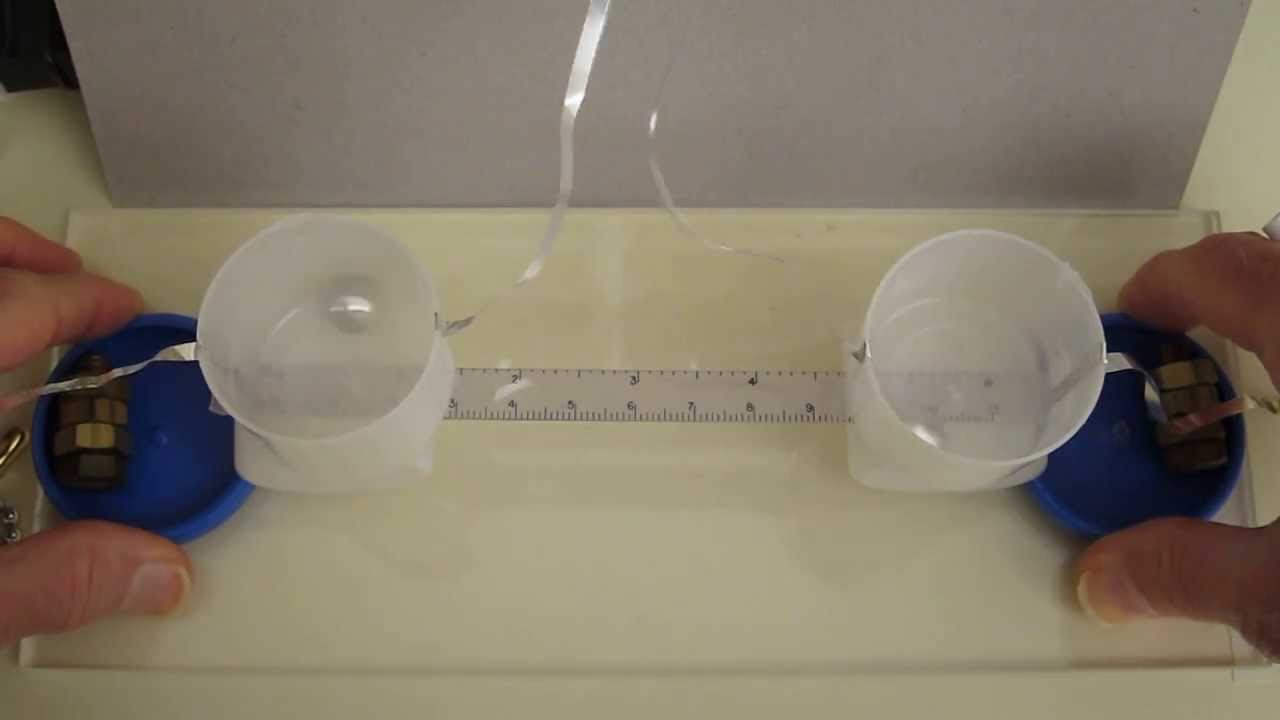

This experiment demonstrates Huygens-style synchronization using two electrostatic cyclotrons mounted on a rolling platform. Each cyclotron features a ½-inch aluminum ball rotating under electrostatic force.
When the platform is free to move, the oscillators consistently synchronize in frequency (RPM) and phase—achieving a stable 180-degree out-of-phase relationship within a few revolutions.
In contrast, when the platform is fixed, synchronization fails due to frequency asymmetry between the two oscillators.
This setup highlights the role of mechanical coupling via platform mobility in achieving phase-locking behavior. The test is repeated three times with consistent results. In the final segment, after power is disengaged, the balls visibly decelerate in opposite directions, confirming sustained phase opposition. Viewers can pause the video to compare instantaneous ball positions and verify synchronization behavior.
This demonstration extends the concept of Huygens synchronization—originally observed with pendulums—to electrostatic systems, emphasizing the influence of shared mechanical degrees of freedom.
Observe Huygens synchronization using metronomes and electrostatic oscillators:
youtube.com/playlist?list=PLCbYhDNjOviGPxYboeCqwggh3P2QjKkmm
#electrostaticmotor #PhaseLocking #CoupledOscillators #huygens
