80/20: Structural Shapes @8020llc

Uploaded October 2024 | Updated September 2026, 1 week ago

To Purchase: bit.ly/3Om8Tn4
Find in Catalog: bit.ly/428g7iZ
80/20 Website: bit.ly/3peM7n3

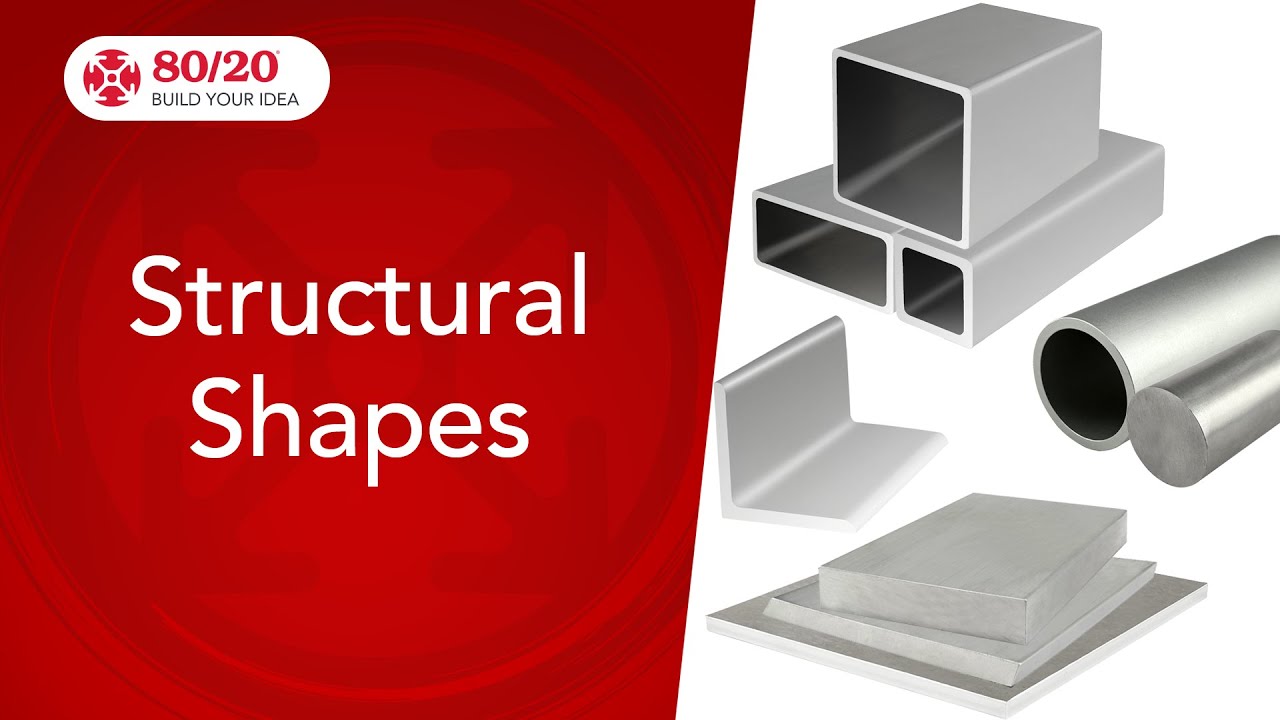

Structural shapes are a collection of profiles in various shapes, sizes and finish, without machining. This means you can create parts and pieces unique to your build! Take a look at our square, round, angled, flat profiles and more to make custom parts.
