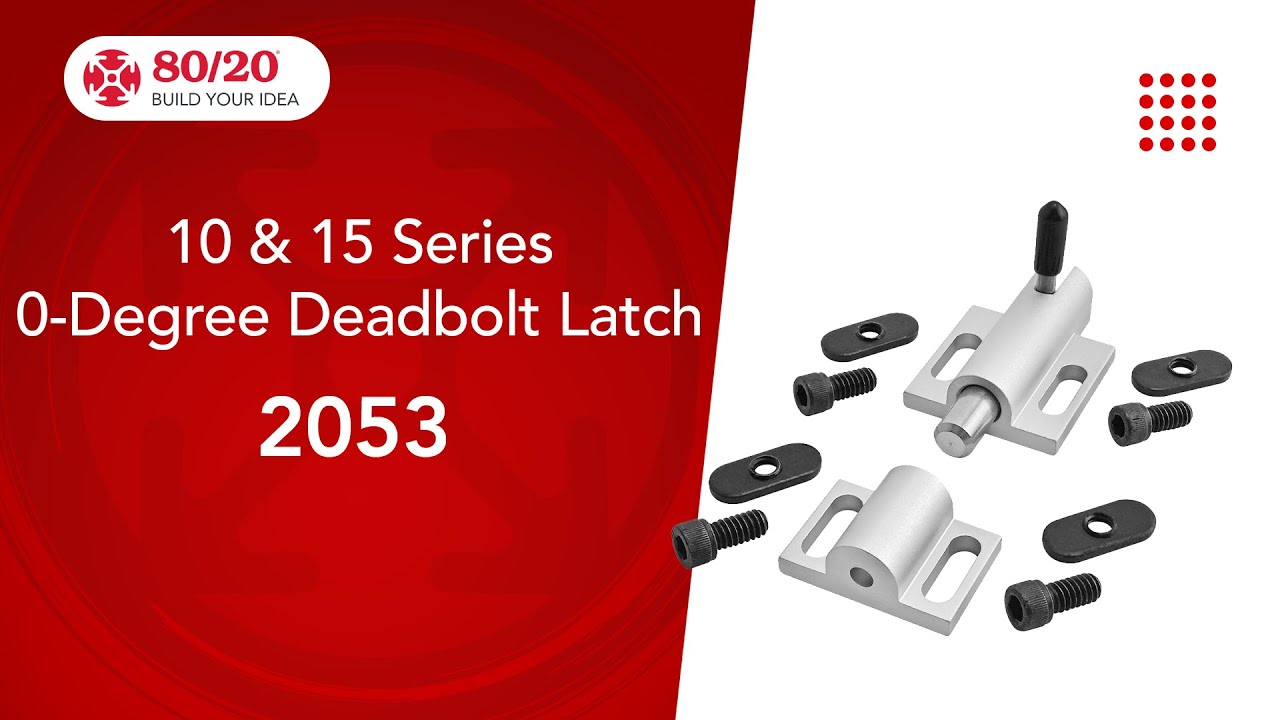

80/20: 10 & 15 Series 0-Degree Deadbolt Latch (2053) @8020llc

Uploaded November 2024 | Updated September 2026, 1 week ago

To Purchase: bit.ly/3KGvQic
Find in Catalog: bit.ly/428g7iZ
80/20 Website: bit.ly/3peM7n3

The 0 degree deadbolt latch is made of 6105-T5 aluminum, making it strong and corrosion-resistant. The body supports a stainless steel bolt, spring and pin. It has a positive spring-loaded deadbolt which makes it ideal for guarding and enclosure applications. The hardware to mount the latch to a T-slot is included.

80/20: 10 & 15 Series 0-Degree Deadbolt Latch (2053)
