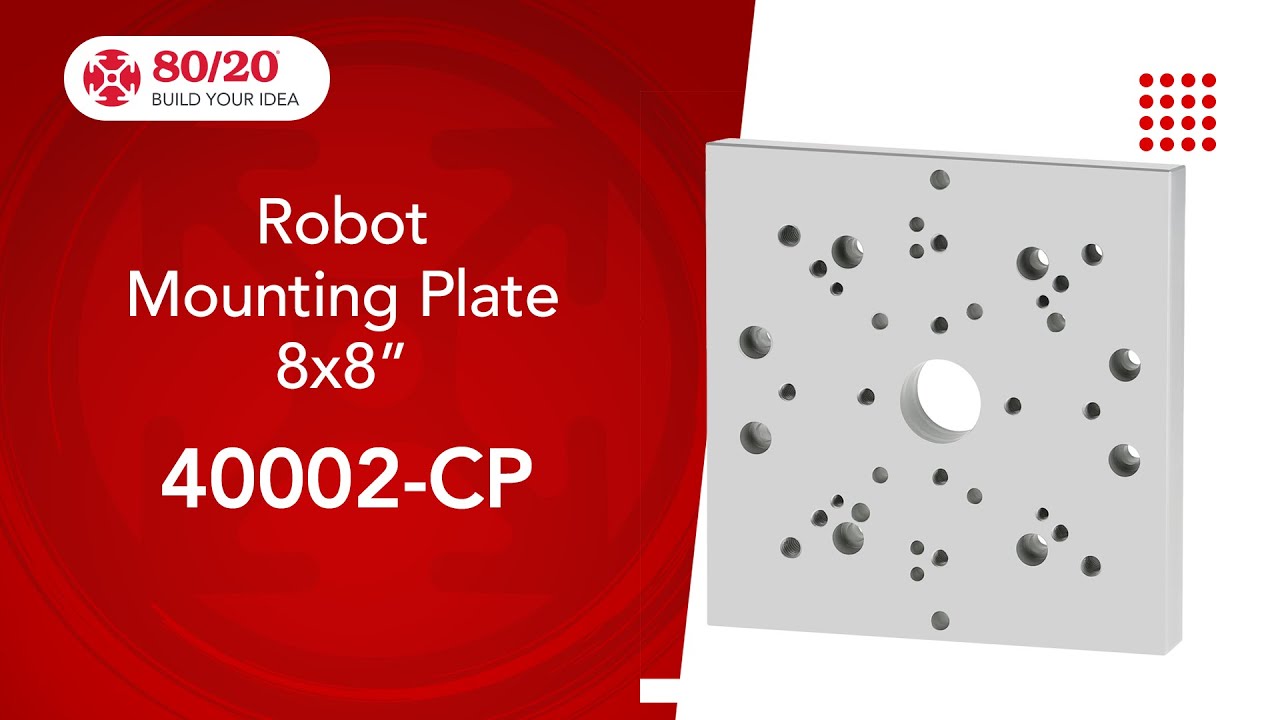

80/20: 8 Robot Mounting Plate 40002-CP @8020llc

Uploaded December 2023 | Updated September 2026, 1 week ago

To Purchase: bit.ly/48Ka1ca
Find in Catalog: bit.ly/428g7iZ
80/20 Website: bit.ly/3peM7n3

The 40002-CP mounting plate is compatible with Aubo® - i3, i5, i10, i16 and Kinova® - Link 6, GEN 2, and GEN 3 collaborative robots (cobots).

Precise robot placement with dowel pin holes
Compatible with 80/20’s 40 series profiles & parts
Countersunk holes for a variety of mounting options
Center thru hole for electrical and pneumatic lines
Connect directly to 80/20’s robot pedestals
