80/20: Slide-In Economy T-nut (3678) @8020llc

Uploaded November 2023 | Updated September 2026, 2 weeks ago

To Purchase: bit.ly/3XHhZxQ
Find in Catalog: bit.ly/428g7iZ
80/20 Website: bit.ly/3peM7n3

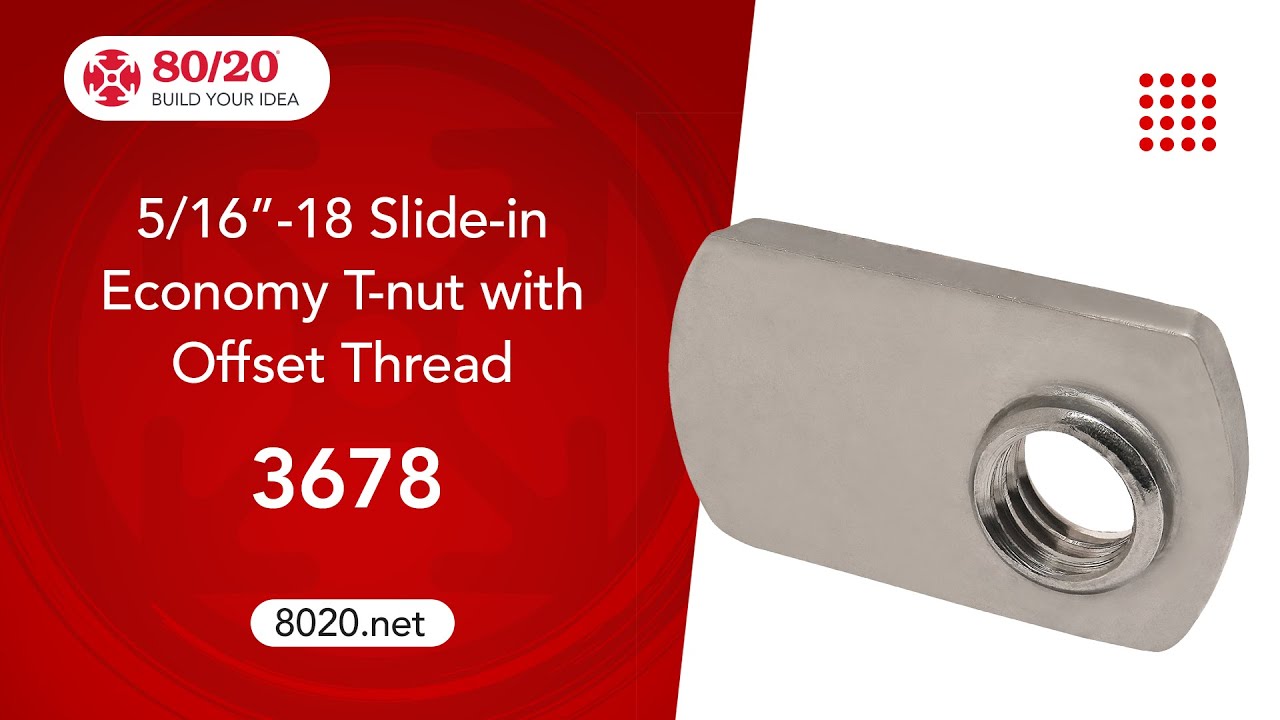

The slide-in economy T-nut with offset thread is a cost-effective fastening option available with options in size, material, and finish. It loads from the profile ends and has a pilot thread projection that adds additional threading for increased strength. The offset thread of the slide-in economy T-nut creates clean connections, making it ideal for corner connections because the T-nut extend beyond the length of the profile. Tip: Position the pilot projection down in the T-slot to avoid an uneven connection or crashing.
