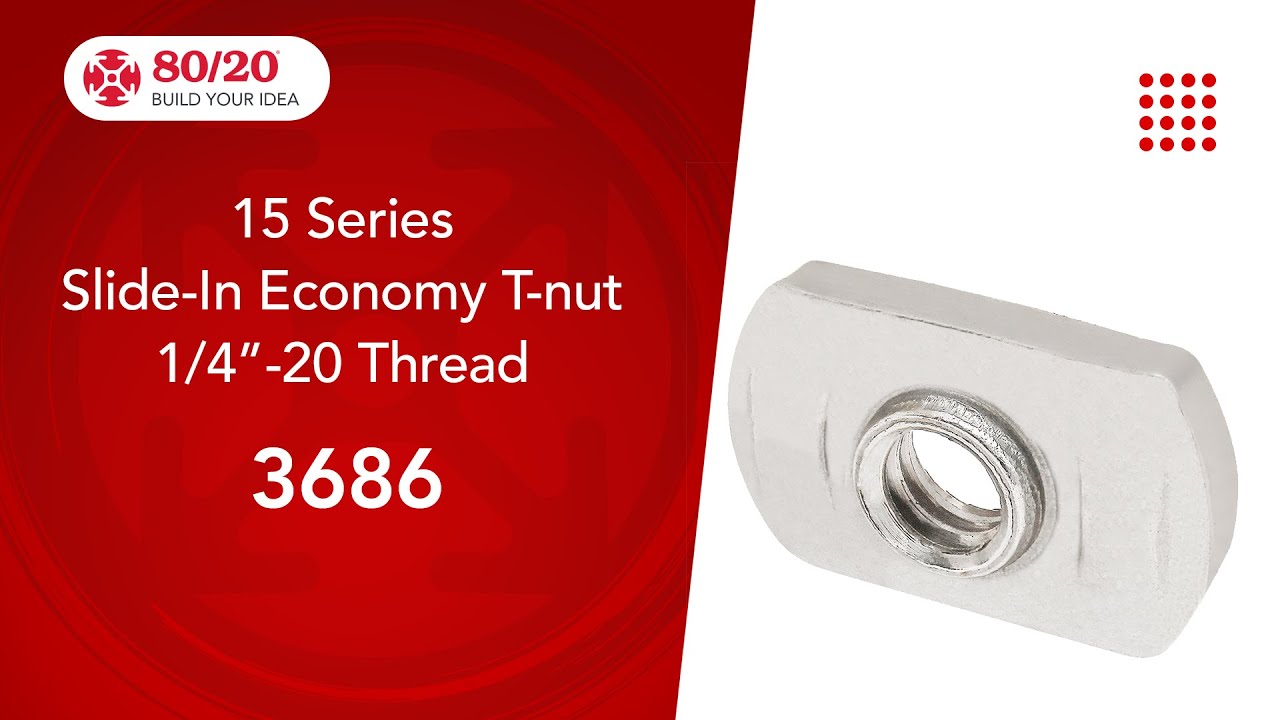

80/20: Economy Slide-In T-nut (3686) @8020llc

Uploaded November 2023 | Updated September 2026, 2 weeks ago

To Purchase: bit.ly/3PfUqIo
Find in Catalog: bit.ly/428g7iZ
80/20 Website: bit.ly/3peM7n3

The slide-in economy T-nut with centered thread is a cost-effective fastening option available with options in size, material, thread, and finish. It loads from the profile ends and has a pilot thread projection that adds additional threading for increased strength. The centered thread of the slide-in economy T-nut lends itself to connections towards the middle of a profile or with a flat plate. Tip: Position the pilot projection down in the T-slot to avoid an uneven connection or crashing.
