Uploaded September 2021 | Updated November 2026, 14 hours ago

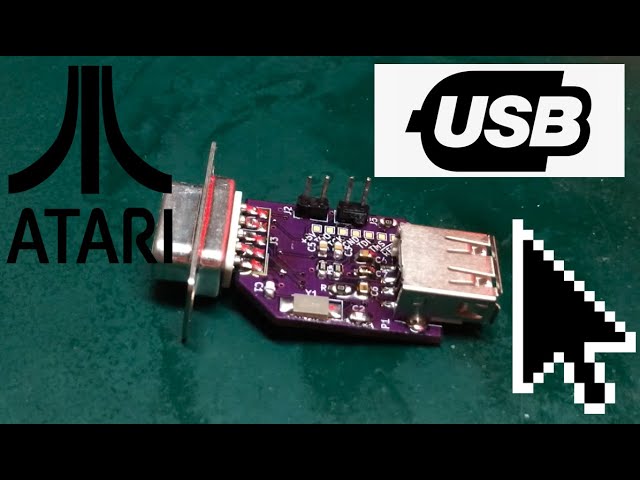

I introduce, demonstrate and build a Smalliermouse board.
github.com/dh219/SmallyMouse2
Smalliermouse is an Atari-targeted refactor of Simon Inns' Smally Mouse 2 quadrature mouse emulator for modern USB mice: github.com/simoninns/SmallyMouse2
Here I demonstrate the improvements over both the more common USB-to-Quadrature adapters and over the upstream Firmware and show how to build and program your own from a circuit board using SMT parts, a DE9 socket, a USB-A socket and a couple of jumpers.
0:00 Introduction
2:06 Why Smalliermouse?
9:33 The board
11:19 Soldering the QFP
26:30 The passives & crystal
36:52 Hot air alignment
39:47 USB-A socket
43:33 DE9 socket
47:53 Firmware
55:16 Testing
57:41 Conclusion
