Mechanism for drawing a hexagram 2 @thang010146
Mechanism for drawing a hexagram 2  @thang010146
Uploaded September 2025 | Updated November 2026, 2 days ago

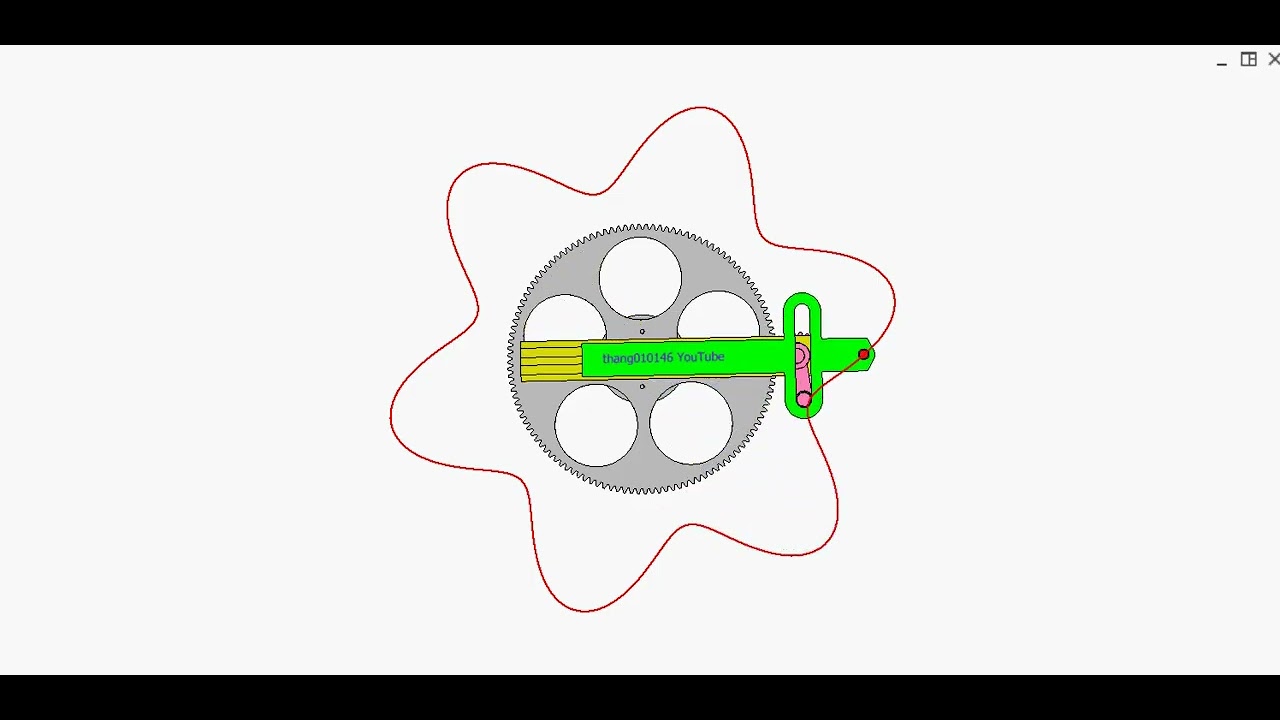

Input: yellow runway.
Output: green slider.
The red pointer fixed on the slider draws a hexagram.
This is a combination of a satellite gear drive and a sine mechanism.
Change the gear ratio to get a different output curve.
This mechanism can be used for cake decoration.

STEP files of this video:
mediafire.com/file/k67uodbez2sstcv/MechanismDrawHexagram2STEP.zip/file
Inventor files of this video:
mediafire.com/file/7270ngw10jdwd92/MechanismDrawHexagram2Inv.zip/file
