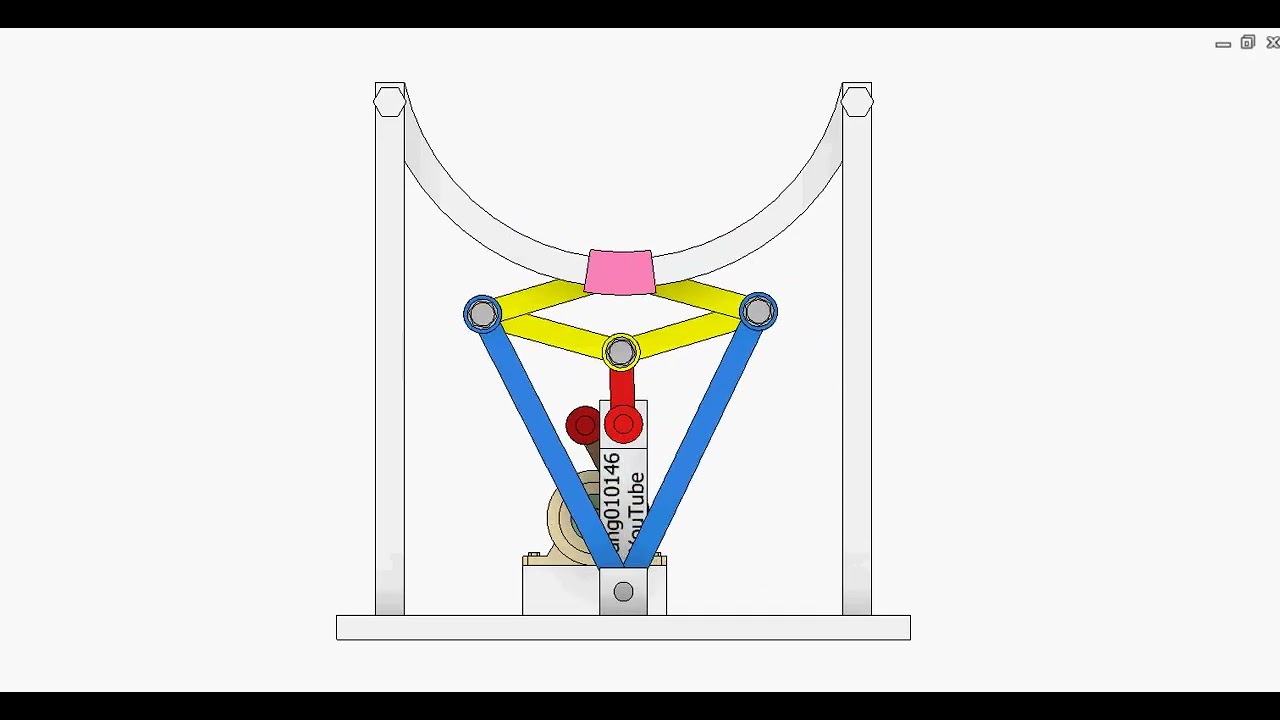

Input: red crank rotating regularly.
Output: pink slider.
Here the mechanism shown at:
youtu.be/1VzRxG1Bg04
is applied therefore, the force acting on the curved runway is negligible.
A four-bar linkage (green, brown and red bars) is used to convert the continuous rotation into the reciprocating rotation of the red bar.
To enlarge the output angle, instead of the for-bar linkage, use other mechanisms such as:
youtu.be/pOMmBK2fe8g
STEP files of this video:
mediafire.com/file/xp8qaf8127d6gdm/ControlMotionCurvedSlider3STEP.zip/file
Inventor files of this video:
mediafire.com/file/kk9zo74rec4ae9l/ControlMotionCurvedSlider3Inv.zip/file
