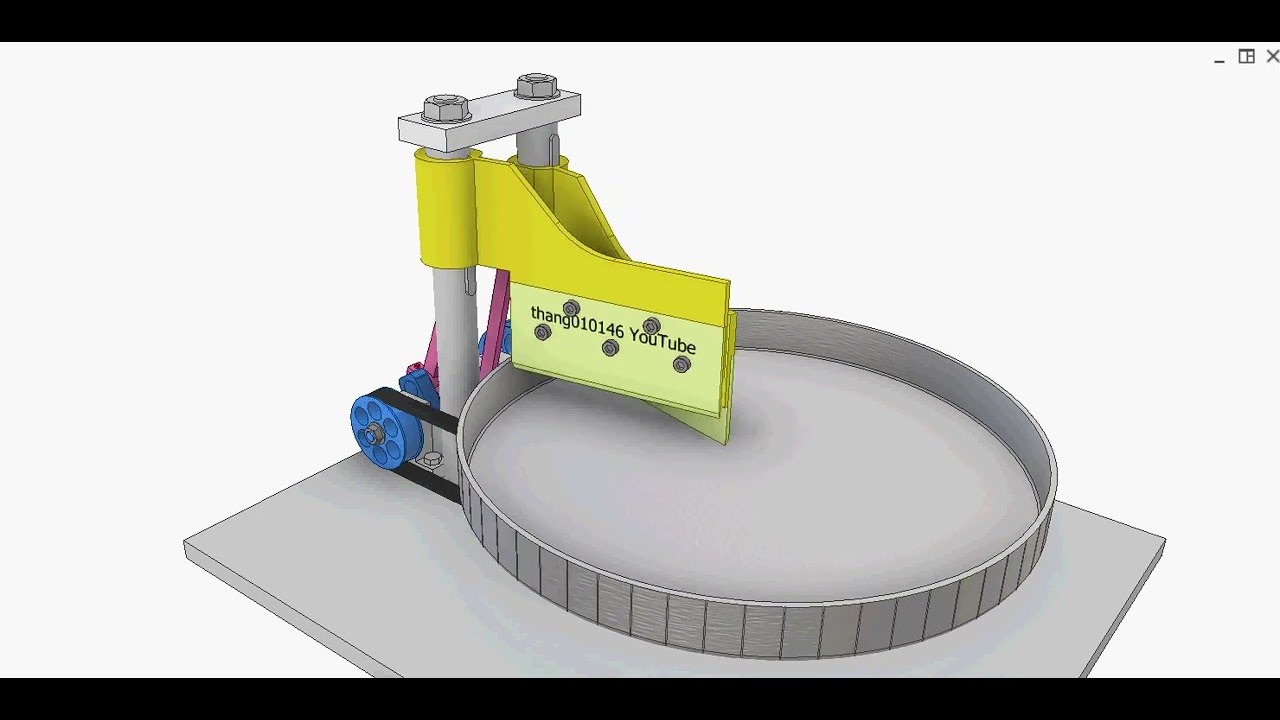

The meat is fed into the rotating tray.
Two yellow blades move up and down to hash the meat.
The up and down movement is achieved by a slider crank mechanism consisting of a blue double crankshaft and pink connecting rods.
The rotation of the tray is achieved by means of a belt drive and a worm drive.
The crankshaft receives rotational motion from an external source via a belt drive (not shown).
This mechanism is my speculation to explain what is behind the machine shown at
youtu.be/CFvvYS2GlLk
at the request of a YouTube viewer.
STEP files of this video:
mediafire.com/file/q1hksit7cbdm8c6/MeatHashMachineSTEP.zip/file
Inventor files of this video:
mediafire.com/file/lfusffd84m3qali/MeatHashMachineInv.zip/file
