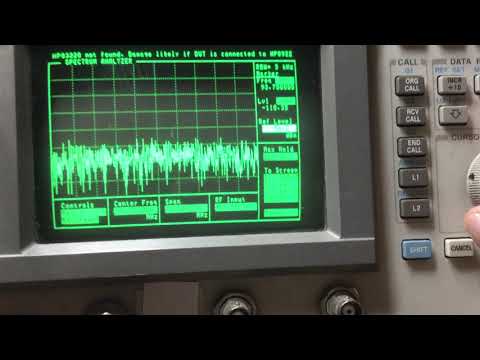

A subscriber has asked about how to get the HP8922 Series radio test sets to listen to off air distant RF signals & demodulate them so they can be listened to on the speaker inbuilt into the test set. A common problem is that these have a mute DAC setting which is by default set to 1 or greater, this means that despite being able to set either the Spectrum analyser or CW Analyser to analyse the off air signal followed by selecting the AF IN field in the AF analyser to FM DEMOD its still not able to receive any demodulated FM audio unless the signal has a large amplitude in excess of 150uv which prevents general off air listening of weaker distant signals via an antenna connected to the AUX RF IN Port. likewise connecting an oscilloscope to the FM DEMOD out BNC socket on the Front of the test set is found to have no audio output. This is because the service menu RCVR_FM_MUTE latch value is 1 or greater. this video shows how to change it to 0 to unmute the FM receiver to allow the user to listen to weak off air RF signals & i demonstrate that ability here. For those whom have muddled their test set RAM with other changes & wish to restore to factory setting within the same service screen there is an option to reset the RAM to factory defaults allowing you to start again from scratch. For a greater overview of the HP8922 please see my demo video in my channel & the HP8922 Playlist on youtube.
