How the stop button breaks a PLC seal-in: the normally-closed stop sits in series with the rung, so pressing it opens the circuit and drops the output. Here's how.
โก QUICK ANSWER
In a start-stop seal-in circuit, the stop button's job is to break the seal-in and drop the output. Here's how: the output seals itself in through a contact wired in parallel with the start button, so it stays on after you release start. But the normally-closed stop contact sits in series with that whole rung โ it's normally passing power, keeping the circuit complete. When you press stop, that contact opens, breaking the series path, so no power reaches the output no matter what the seal-in contact is doing. The output drops, and because the seal-in contact opens with it, the circuit won't re-energize until you press start again. That series placement of the normally-closed stop is exactly why stop always overrides the seal-in. You can see it live in the ACC PLC Simulator. The full walkthrough is in the guide below.

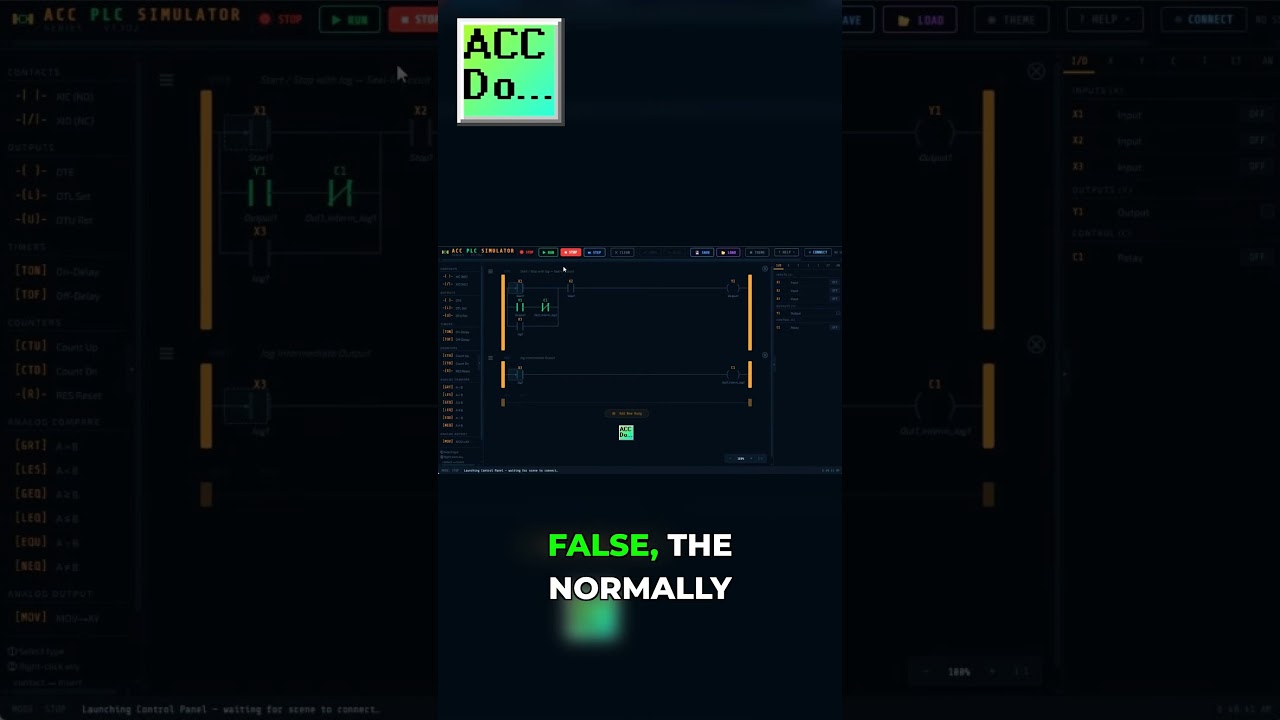

๐ฎ SEE IT LIVE โ THE ACC PLC SIMULATOR (free, no install, right in your browser)
accautomation.ca/simulator
๐ FULL WRITTEN TUTORIAL + DOWNLOADS (Control Panel scene)
accautomation.ca/how-to-use-the-acc-plc-simulator-control-panel-scene-tutorial
๐ WHAT YOU'LL LEARN
โ How a seal-in contact keeps an output on after you release start
โ Why the normally-closed stop sits in series with the rung
โ How pressing stop opens the circuit and drops the output
โ Why stop always overrides the seal-in
โ FREQUENTLY ASKED
Q: How does the stop button break a seal-in circuit?
A: The normally-closed stop contact is in series with the whole rung, so pressing it opens the circuit and cuts power to the output โ no matter what the seal-in contact is doing. The full walkthrough is in the guide.
Q: What is a seal-in contact?
A: It's a contact from the output wired in parallel with the start button, so once the output is on it keeps the rung true and the output stays on โ until stop breaks the circuit.
๐ See it live in the simulator: accautomation.ca/simulator
๐ MORE RESOURCES
โถ Free ACC PLC Simulator: accautomation.ca/simulator
โถ PLC Beginners Guide: accautomation.ca/programming/plc-beginners-guide
โถ Free eBooks: accautomation.ca (subscribe for download)
๐ RECOMMENDED HARDWARE
โถ Shop: automationdirect.com
โถ Parts Guide: accautomation.ca/purchase-find-parts
๐ฌ Questions? Drop a comment below.
๐ New tutorials every Monday โ Subscribe and hit the bell!
#PLC #LadderLogic #IndustrialAutomation #PLCProgramming #ACCAutomation #SealIn #StartStop #PLCSimulator #StopButton #Shorts
