FluidX3D [FLUID SIMULATION] - Smashing the Memory Wall with FP16 | 100 Subscriber Special @ProjectPhysX

FluidX3D [FLUID SIMULATION] - Smashing the Memory Wall with FP16 | 100 Subscriber Special @ProjectPhysX

Uploaded April 2019 | Updated September 2026, 1 week ago

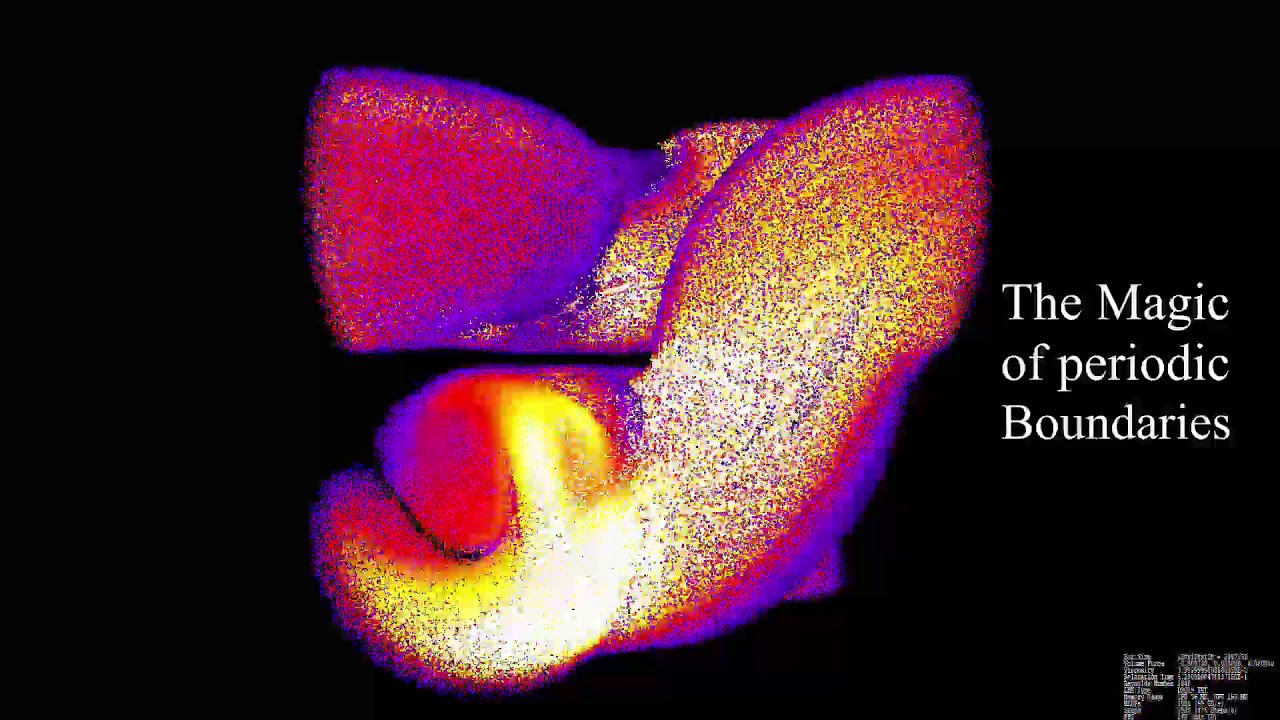

FluidX3D is a real time 3D fluid simulation based on the lattice Boltzmann method. It is written in OpenCL C (GPU code) and optimized to the physical limit (video memory bandwith, ~520GB/s).

All demonstrations in the video are simulated and visualized in real time on a Nvidia Titan Xp. Graphics are done with the OpenCL C version of Line3D, the fastest graphics engine ever written for primitive shapes like lines, dots and circles. It can handle up to 2 billion lines per second.

LBM performance is only limited by video memory bandwidth - the so-called memory wall. Storing the LBM distribution functions in memory as FP16 instead of FP32 cuts the memory bandwidth requirements in half, doubling the simulation speed at the cost of a bit of accuracy. My implementation has a hardware efficiency of up to 95%, meaning that 520 GB/s of the total 548 GB/s of video memory bandwidth are used. This results in a peak performance of 5.2 GLUPs (giga lattice updates per second, how many LBM lattice points are processed in 1 second) for the D3Q19 velocity set.

More information at projectphysx.de

Music: Notaker - Fatal System Error
