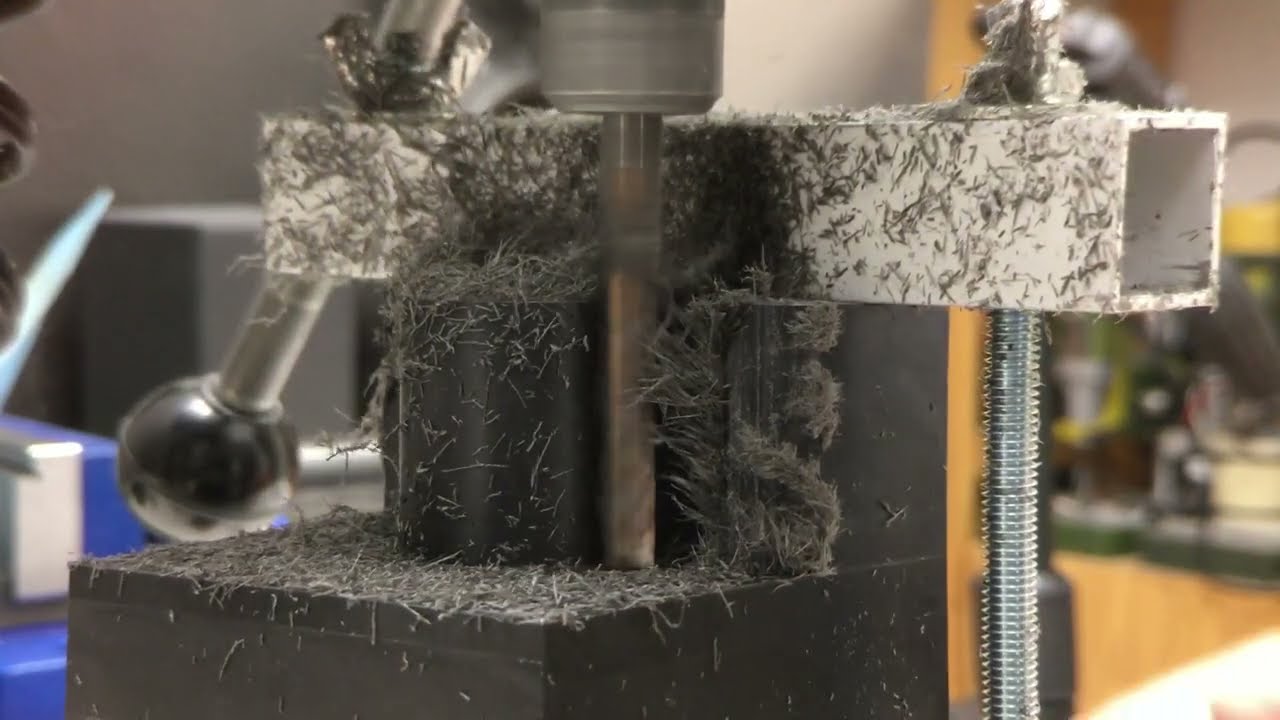

Last week we did the first round table milling operations on the body: A round inside pocket and an O-ring grove at one side (link below). Now we’re going to do some round table milling on the outside of the body! And it won’t be pretty.
First we have to figure out how to clamp the work piece on the round table so we can actually mill on its outside. Then we start milling with the goal to have a cylinder left in the center. We start out strong but it goes downhill from there.
00:00 Intro – more heavy milling of the body
00:35 Drawing – recap of round pocket and grove
01:25 Clamping (1) – on one side for milling the first side
05:30 Milling (1) – down to depth and locking Z-axis
08:07 Milling (2) – the first side inwards
14:39 Clamping (2) – on the other side for milling the second side
15:14 Milling (3) – through the material and then outwards
18:29 Catastrophe – milling outwards was a bad decision
20:53 Milling (4) – the rest inwards again
24:40 Milling (5) – the first half of the O-ring grove
28:40 Clamping (3) – moving the clamp to the other side again
28:48 Milling (6) – the second half of the O-ring groove
29:06 Results – butt ugly but probably functional
34:23 Wrap-up – next will be some thread cutting, bye
