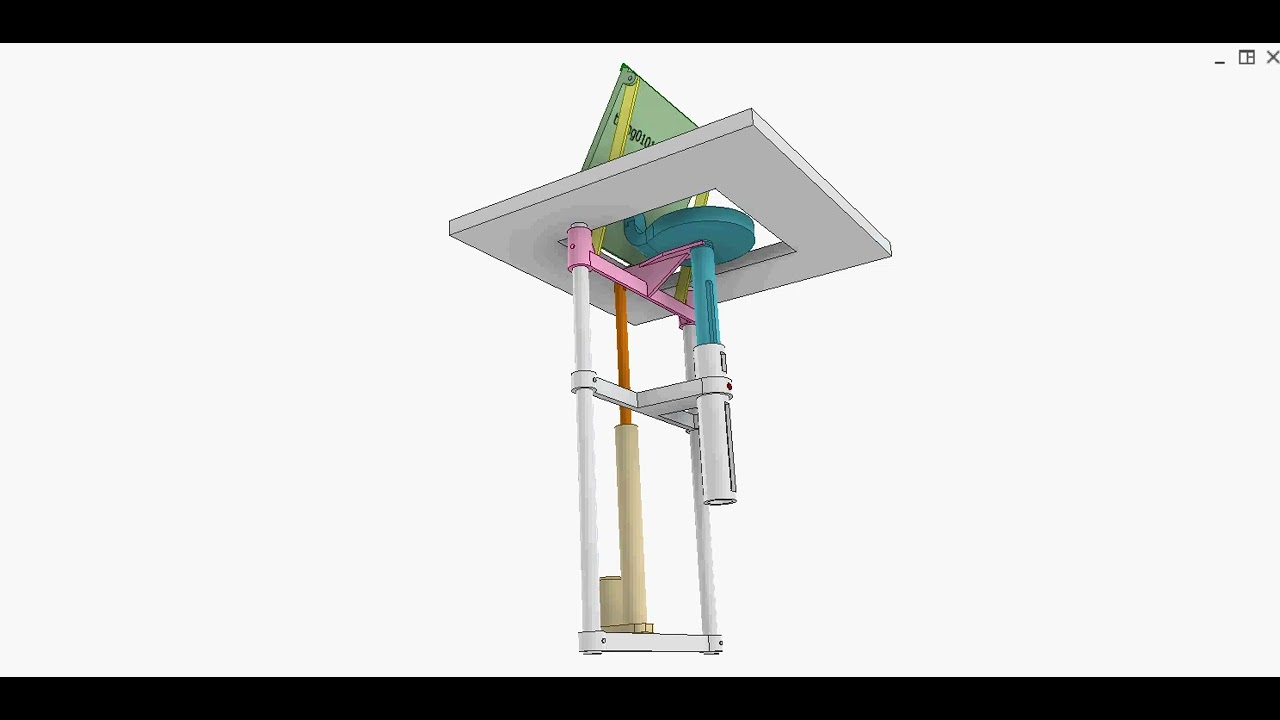

To display an item, the green lid will first open, then the item tray will lift and rotate 45 degrees to attract the viewer's attention.
The linear actuator lifts the pink slider to perform these two movements.
The lid is opened by a slider crank mechanism (pink slider, yellow connecting rod).
The jade tray is lifted along with the pink slider and rotated by the jade barrel cam attached to the tray.
This design was created at the request of a YouTube viewer.

STEP files of this video:
mediafire.com/file/0qljck87lrpehvg/DisplayBox2STEP.zip/file
Inventor files of this video:
mediafire.com/file/jnhfwhcmqfw9lm1/DisplayBox2Inv.zip/file
