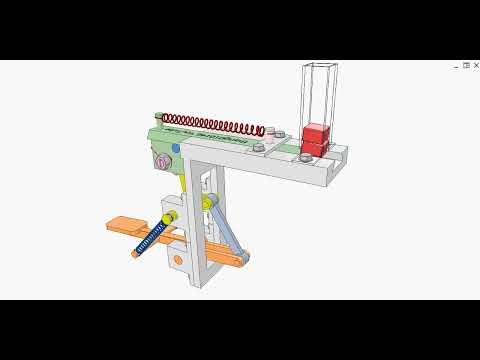

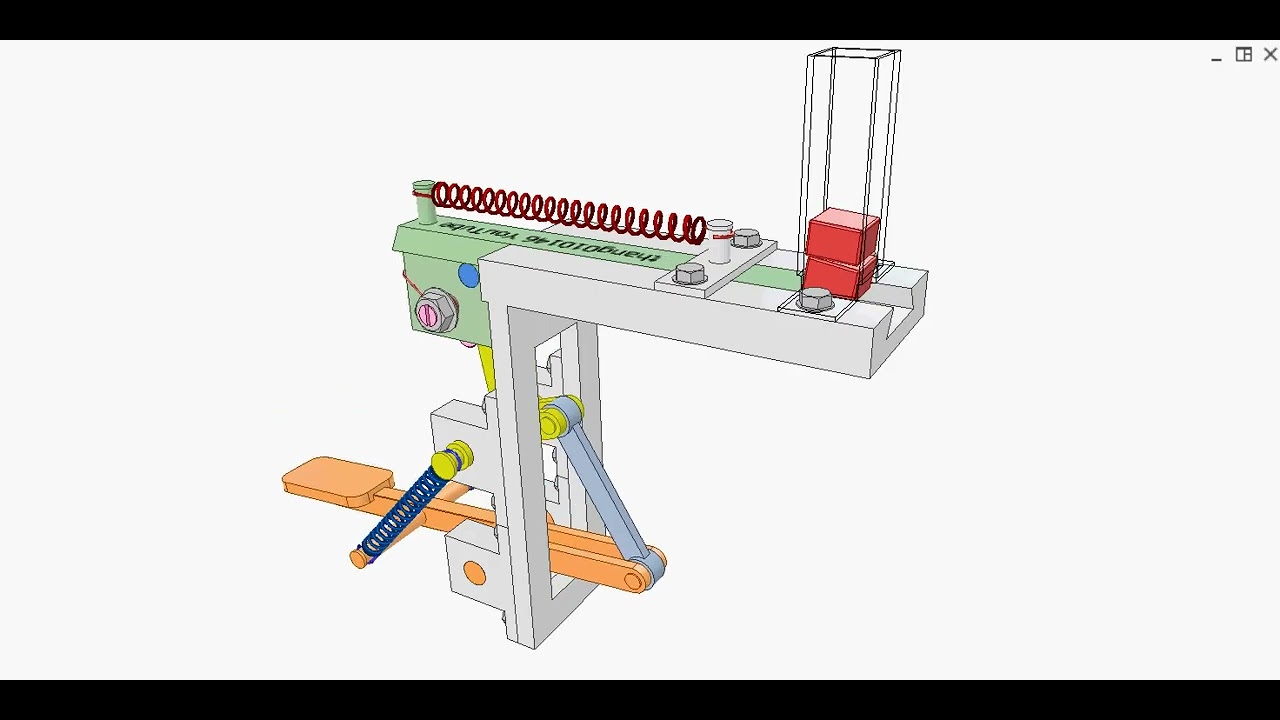

When the dog presses the orange lever, a treat will be released. This happens because the orange lever pushes the yellow lever and the yellow lever causes the green slider to move back and then move forward by the red spring to eject the treat.
The orange lever, the blue connecting rod and the yellow lever create a four-bar linkage. This linkage is needed to reduce the rotation angle of the orange lever.
The pink lever tends to achieve a vertical position thanks to the coil spring.
The two blue springs return the orange lever to its resting position.
This video was made in response to a YouTube viewer's request.
STEP files of this video:
mediafire.com/file/uqo9pbxrni43dum/DogTreatDispenserSTEP.zip/file
Inventor files of this video:
mediafire.com/file/4zco8oawq2e81o8/DogTreatDispenserInv.zip/file
