Parallelogram mechanism 4 @thang010146
Parallelogram mechanism 4  @thang010146
Uploaded October 2025 | Updated November 2026, 13 hours ago

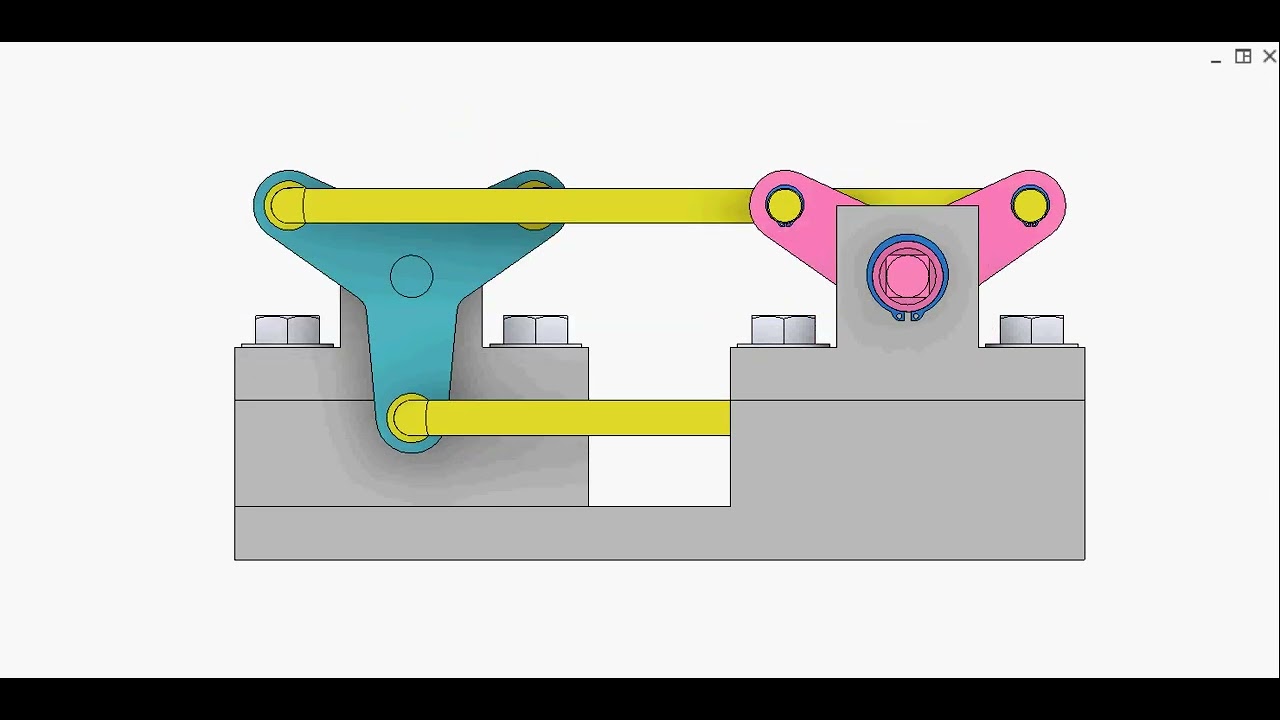

This parallelogram mechanism has 3 connecting rods so there is no dead position. It can be used to transmit high torque rotary motion over long distances with a gear ratio of 1.

STEP files of this video:
mediafire.com/file/9txzarwvxn84t2h/ParallelogramMechanism4STEP.zip/file
Inventor files of this video:
mediafire.com/file/a5knetw0w5mfc15/ParallelogramMechanism4Inv.zip/file
