The megaAVR 0-series MCU ADC sample accumulation …
↓↓↓ Complete description, time index and links below ↓↓↓
I’ve already done eight videos about the Arduino Nano Every, its ATmega4809 MCU and the Microchip megaAVR 0-series family of MCUs in general. This time I want to have a look at the accumulation feature of the ADC and oversampling.
First we choose a signal source (internal temperature sensor). Then we have a look at the datasheet and implement sampling with 64x accumulation. Finally we go over the principle and math of oversampling and implement that too.
00:00 Intro – megaAVR 0-series ADC accumulation
00:51 Signal – temperature sensor of the ATmega4809
04:00 Datasheet – ADC, CTRLB register, SAMPNUM parameter
07:15 Accumulating – averaging samples to decrease noise
11:07 Oversampling – the principle and the math
16:46 Increasing resolution – with oversampling of course

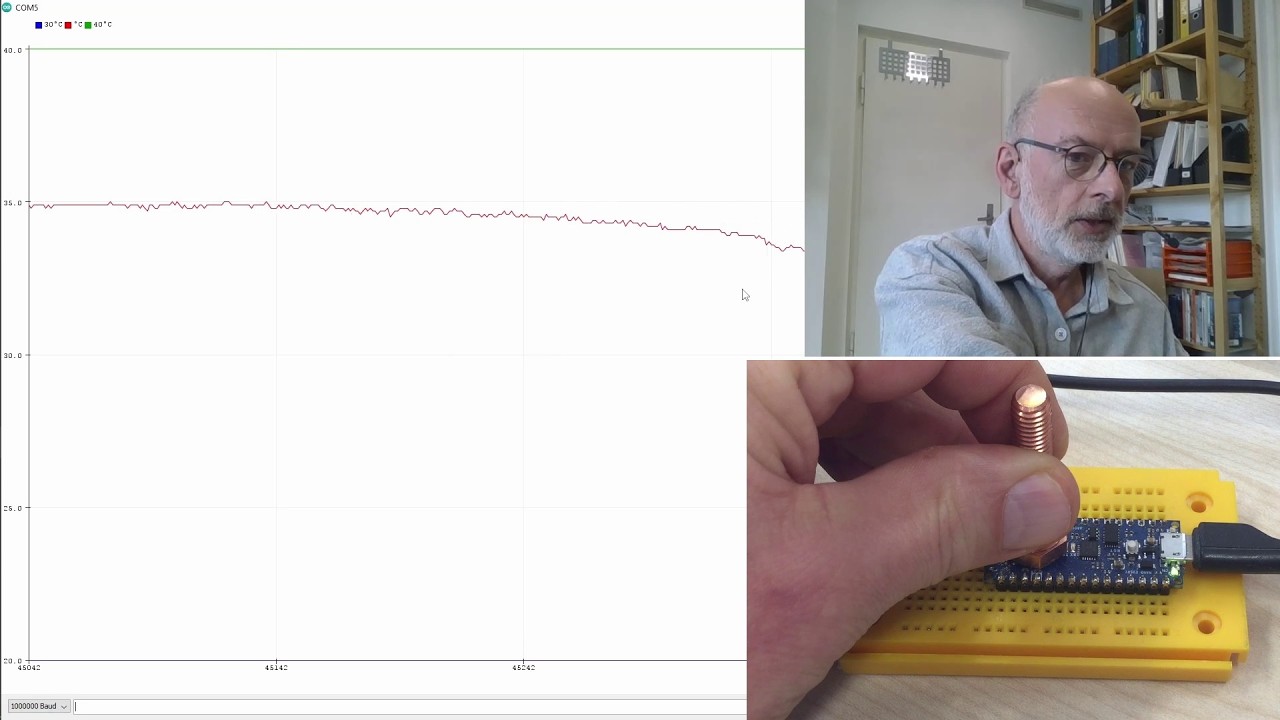

24:08 Experimenting – just fooling around with the results
28:10 Wrap-up – maybe you can guess what’s next, bye
Tutorials youtube.com/playlist?list=PLwq-2MnM58FKn3920rc1V0qoTsQDheTIw
Arduino Nano Every: The Better Nano? – Tests and Shootout with Nano v3 youtu.be/CHDnw7W3SoQ
Arduino Nano Every – Power Supply Architecture and Brownouts youtu.be/Jhvwm21N8qk
Arduino Nano Every: Four Hardware Serial Ports – Without Additional Hardware youtu.be/yG_ialcawho
Arduino megaAVR Watchdog & Resets, e.g. Nano Every ATmega4809 youtu.be/X_OBmDWmSHw
Arduino megaAVR Watchdog & Resets, e.g. Nano Every ATmega4809 – Errata youtu.be/wuEQdN83LiU
Arduino megaAVR Brownout Detector, e.g. Nano Every ATmega4809 – First Look youtu.be/AUujyJMlaNQ
Arduino megaAVR Analog Comparator, e.g. Nano Every ATmega4809 youtu.be/6zbvXBz7TKc
Arduino megaAVR Temperature Sensor (& ADC), e.g. Nano Every ATmega4809 youtu.be/EnpKU4FkOXE
Full Fly-by-Wire Electric Outboard (9): Voltage Measurement Circuit & Code youtu.be/TAGQqRPxVXc
My code drive.google.com/drive/folders/1HZSo9netk_eXzFz0NvrNtt87Fstid6BT?usp=sharing
