80/20: Roll-In T-nut with Flex Handle (3376) @8020llc

Uploaded November 2023 | Updated September 2026, 2 weeks ago

To Purchase: bit.ly/46ClgTa
Find in Catalog: bit.ly/428g7iZ
80/20 Website: bit.ly/3peM7n3

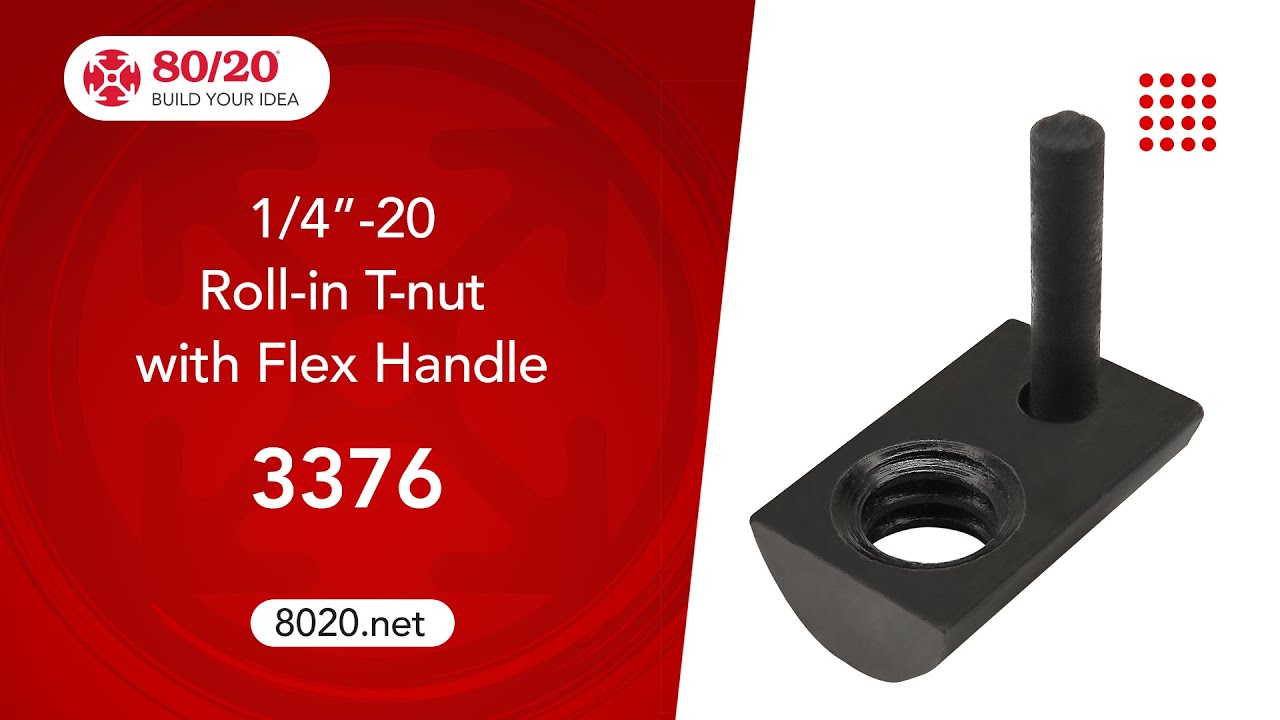

The roll-in T-nut with flex handle is a fastening option that loads from either the profile ends or side, which is helpful in applications where the ends are inaccessible. The flex handle sticks out past the profile to make it easy to position and move within the T-slot. It is available with options in size, material, thread, and finish.
