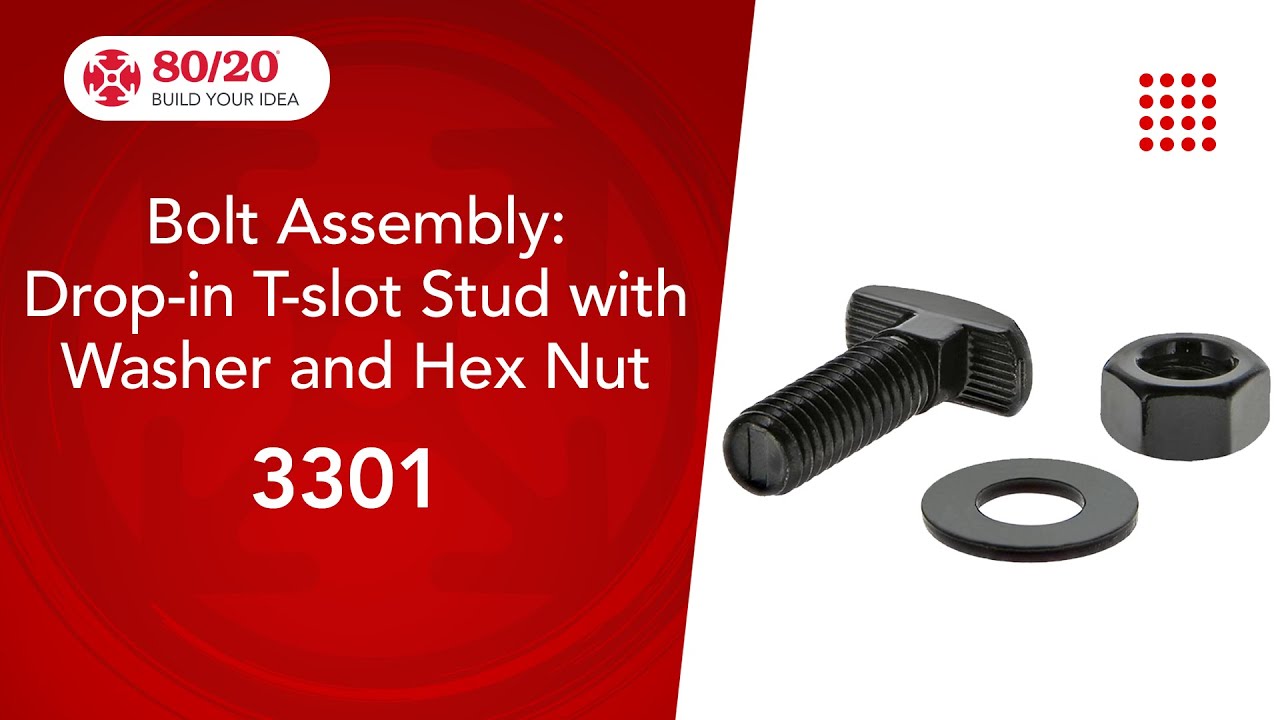

80/20: Bolt Assembly - Black Drop-in T-slot Stud with Washer and Hex Nut (3301) @8020llc

Uploaded December 2023 | Updated September 2026, 2 weeks ago

To Purchase: bit.ly/3QAdhid
Find in Catalog: bit.ly/428g7iZ
80/20 Website: bit.ly/3peM7n3

80/20: Bolt Assembly - Black Drop-in T-slot Stud with Washer and Hex Nut (3301)

80/20: 10 Series 4-Hole Tall Gusseted Inside Corner Bracket (4136)

80/20: 10 Series Bolt Assembly 1/4-20x.500 Black FBHSCS and Slide In Economy T-Nut (3321)

80/20: 15 Series Stainless Steel (SS) 5/16-18x .625 BHSCS w/ Washer & Slide-In Economy T-Nut (3620)

AQSW Solidworks: Mate Bars and Anchor fastener

$80/20: Flanged Casters Overview To Purchase: https://bit.ly/3CIPKVz Find in Catalog: https://bit.ly/428g7iZ 80/20 Website: https://bit.ly/3peM7n3 Hello, and welcome to 80/20’s product highlight series. Today we’re going to take a look at flanged mount casters. These casters are great for making applications mobile. They come in a variety of styles including swivel and non swivel, braking and non braking, and a wide variety of sizes. They’re available in fractional and metric, and compatible across a wide range of profile series. They require no machining, and can be used with, or without, a base plate. Regardless of your choice, a bolt assembly is required. More information on 80/20’s recommended bolt assemblies can be found in the 80/20 product catalog. Now, for our example, we are going to show you how to use a base plate to install your caster. We’ve already got our base plate assembled onto the profile, we’ll take our caster. We’ll line up the holes on the caster with the ones on the baseplate. We’ll take our bolts, and one by one, tighten them down with our wrench. Once you have those tightened down, you have a strong secure connection for your caster. It’s also worth noting, that is comes in a triangle corner style, like this one here. Now hopefully you found this segment on flanged mount casters helpful. For more information please visit 80/20.net and be sure to subscribe to future 80/20 videos. And as always, make it a great day.$ $80/20: Pivot Assembly Overview To Purchase: https://bit.ly/41jX2ZL Find in Catalog: https://bit.ly/428g7iZ 80/20 Website: https://bit.ly/3peM7n3 *For a Dynamic Pivot assembly, ensure that the large washer is secured between the pivot arm and nub and that the smaller washer is placed on the outside of the arm, between the bolt. For more information, please refer to the 80/20 Product Catalog: https://8020.net/bookshelf Hello, and welcome to 80/20s product highlight series. Today were going to take a look at the structural pivots. This connection method allows bars to be positioned along a wide variety of angles. Theyre easy to install and are available in both fractional, metric, and are compatible across a wide range of profile series. Now when it comes to using the structural pivot, you have a few options to choose from. The first choice is how you receive your part. The structural pivot can be purchased as stand-alone parts, or as a preassembled part, ready to install, as seen here. Now the next thing youll want to consider is the alignment of the pivot nub, and how it sits on the profile. The nub comes in two styles, you have the 90 degree and you have the 0 degree, the only difference being the orientation to the bar. Now regardless of your choices, the pivot nub will need additional bolt assemblies for mounting. More information on 80/20s recommended bolt assemblies can be found in the 80/20 product catalog. Now when it comes to installing the structural pivot, the first thing youll want to do is preload your hardware. Preloading not only makes it easier to install your structural pivot, but also saves time during assembly. Now the first thing Im going to do is take the structural pivot and put one last bolt and one last T-nut in it. Its important to know when youre installing your T-nuts, to have the pilot projection facing downwards. Once we have that ready to go, well take our first bar, and slide the pivot nub right onto it. Once weve found our location well take our wrench, and tighten that into place. From there we are ready for our next bar, and well slide it right onto the arms of the structural pivot. Well take our wrench and tighten down that hardware. Now the last thing well want to do is find the angle that we want our bar at. Once weve found that well tighten down the pivot bolts. Now hopefully you found this segment on the structural pivot helpful. For more information, visit 8020.net and make sure to subscribe to future 80/20 videos, and as always, make it a great day.$
