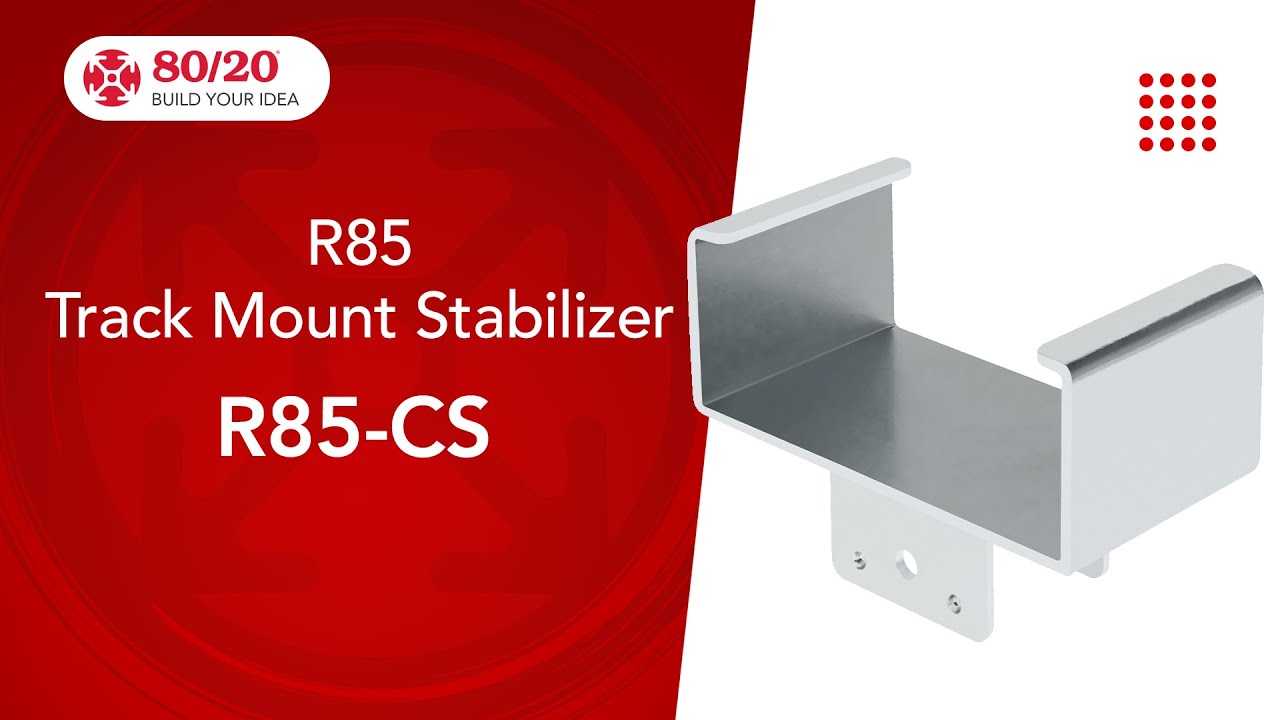

80/20: R85 Track Stabilizer (R85-CS) @8020llc

Uploaded April 2024 | Updated September 2026, 2 weeks ago

To Purchase: bit.ly/3VXvlXU
Find in Catalog: bit.ly/428g7iZ
80/20 Website: bit.ly/3peM7n3

-Used to connect two roller sections or support long spans
-Works with all Steel Roller Track Wide
