Uploaded March 2012 | Updated September 2026, 1 week ago
I'm describing the CPU here, in case you can't understand a word I'm saying. I have a cold.

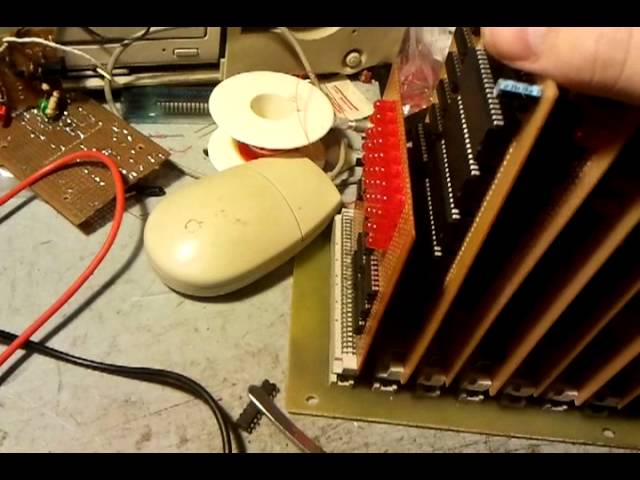

Cards from right to left:
- UART and LED output card
- Control Sequencer Card
- Temporary register and Complement/AND logic
- Work register and Program Counter, with addition logic
- Return and Data stack pointers
- Slow clock and bus monitor
It appears all of the bugs are out of the system, so now I can start developing software for it... I should probably update the documentation for it and put it on my web page too.
