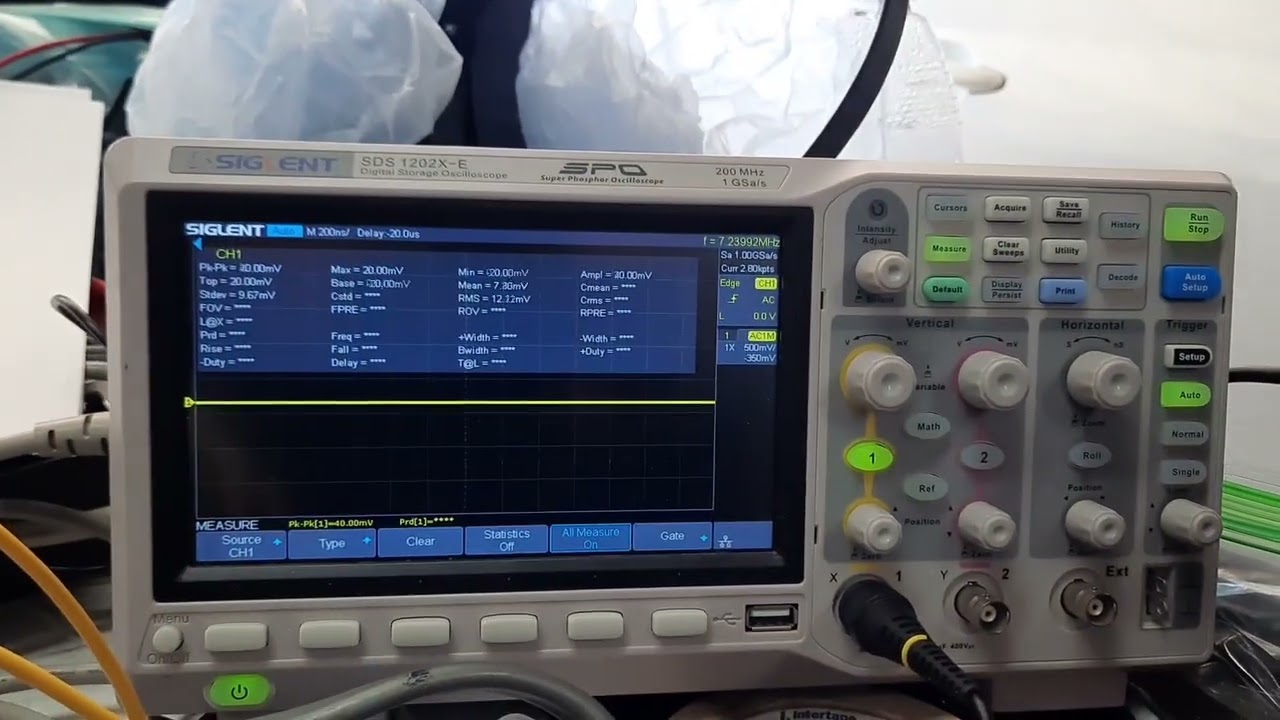

Short Story Long: Not so Good on the Transmitter tests. Following the excellent work of DL2MAJ, Stefan, I looked at the output from the Up-Converter at the HP Filter port and then at the output pf the Pre-Driver.

The output of the Pre-driver looks OK on 40 - 10M but Crap on 75M. The output of the Up Converter follows a similar path. On most band the max CW output is 25-30 watts but on SSB will hit 60 watts. The one huge exception is 75M where if you use full carrier, it will trip the power supply protection.

I intend to remove the Final Brick from the case, and I can rigorously follow Stefans's instructions.
