!!! This experiment uses high voltage only experiment with it, if you know how to handle high voltage and at your own risk !!!
Xrix pointed me out that the switching that I was doing was in like the Tesla radiant energy patend.

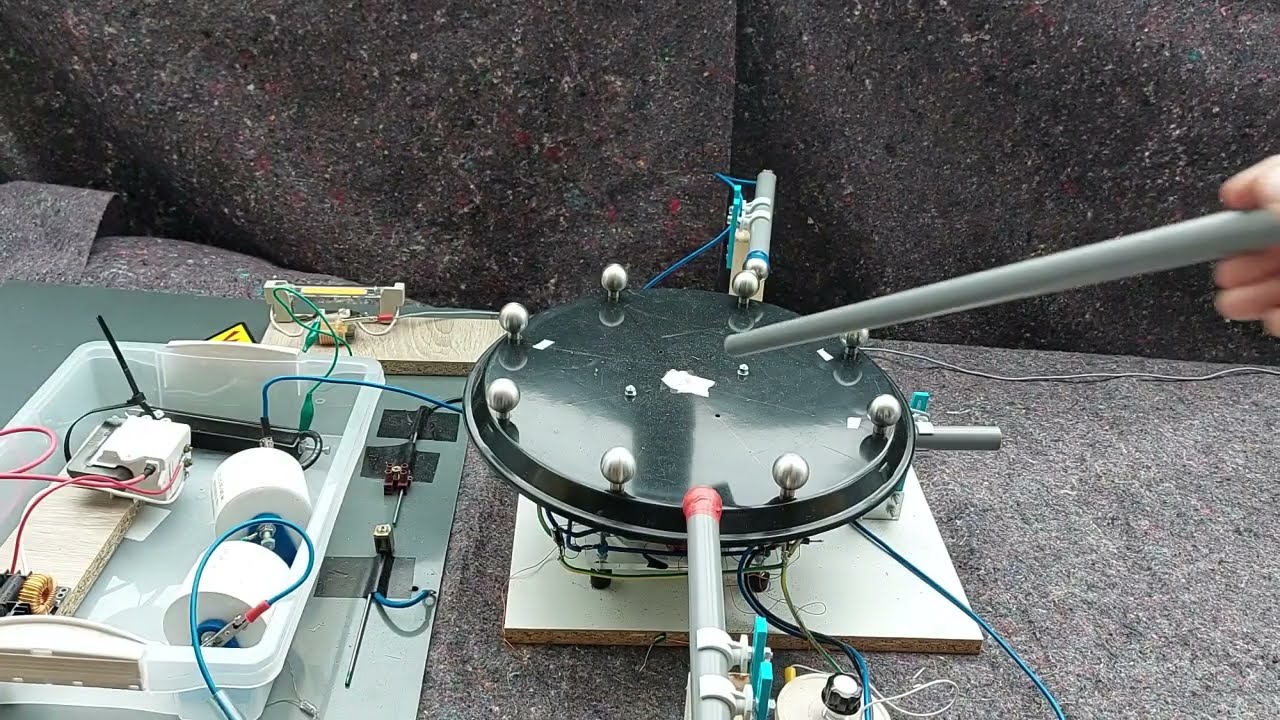

So I looked at the circuit and build mechanical switch.
Two problems with this switch;
1) the knobs create to much wait, therefor I can not go to higher rpm
2) the spark distance is really important and this setup is not stable enough because the 2 contacts are not mounted on the plate where the rotating disk is mounted at, this causes easy change of position and switching problems.
Therefor I'm thinking on a new switching setup.
Xrix pointed me out that a mechanical switch setup like in the Benitez patends could also work so I'm going to look at the materials I have and see if I can build a better switching where I can go higher in sparking frequency.
However in this setup we allready can see that going higher in frequency we can get the led more lighting up.
The capacitor is used in open loop in this system!!!
Picture with circuit overview: photos.app.goo.gl/VH7dbMVQj4K4Z1e4A
