At about 40 seconds, you can really see the rotational velocity of the rotary valve changing speed with every revolution in comparison to the drive sprocket. Pushing the handle to the left makes the valve have a constant speed with a more agressive valve timing and pulling it back to the right cause the rotational speed to vary more, causing the timing to be more conservative (240 degrees of crankshaft intake duration vs. 180 degrees.).

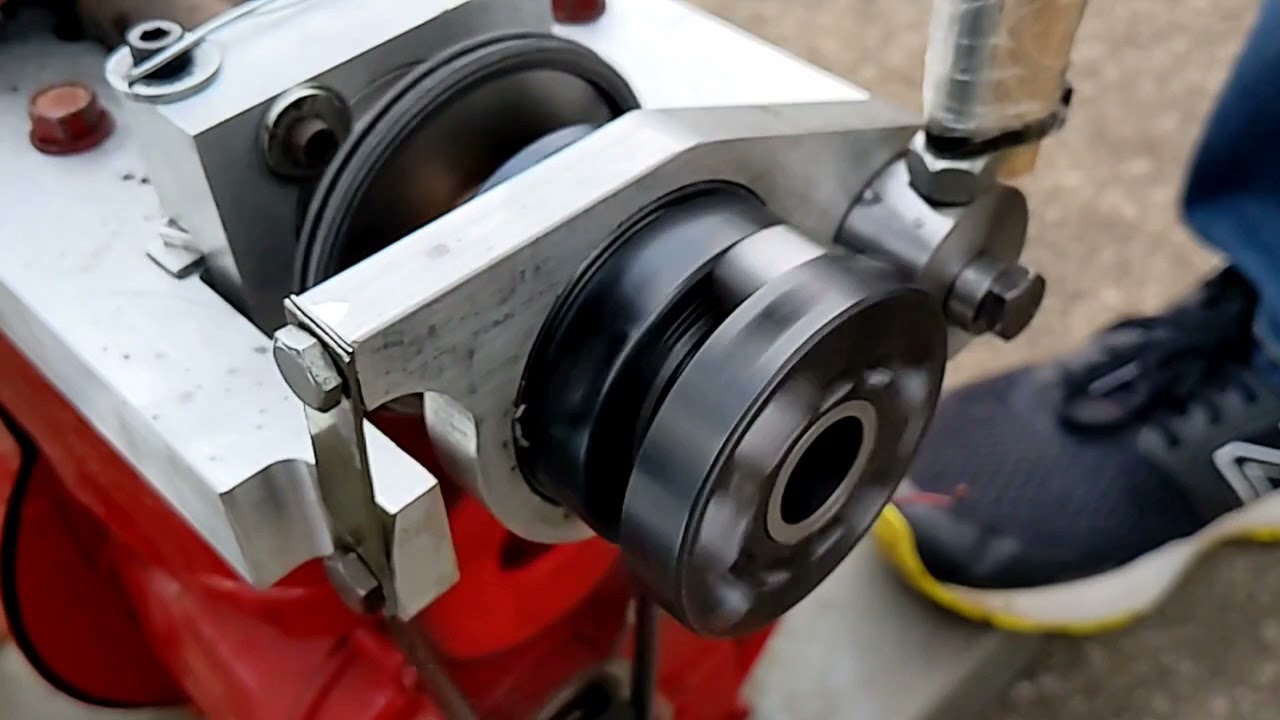

5 hp Briggs and Stratton. The variable speed is achieved using effectively what are two four bar linkages. The middle section between the sprocket and the end is floating around the valve in the middle and it's position is controlled by the eccentric on base of the handle.
You can hear the change in tone as you change the timing. Next up is to put it back on the go-kart frame and take it for a test drive with the variable duration control for the driver.
