QST Wattmeter  - Part 6 Reflected Channel and dbm Display @na5y
QST Wattmeter  - Part 6 Reflected Channel and dbm Display  @na5y
Uploaded February 2020 | Updated November 2026, 1 day ago

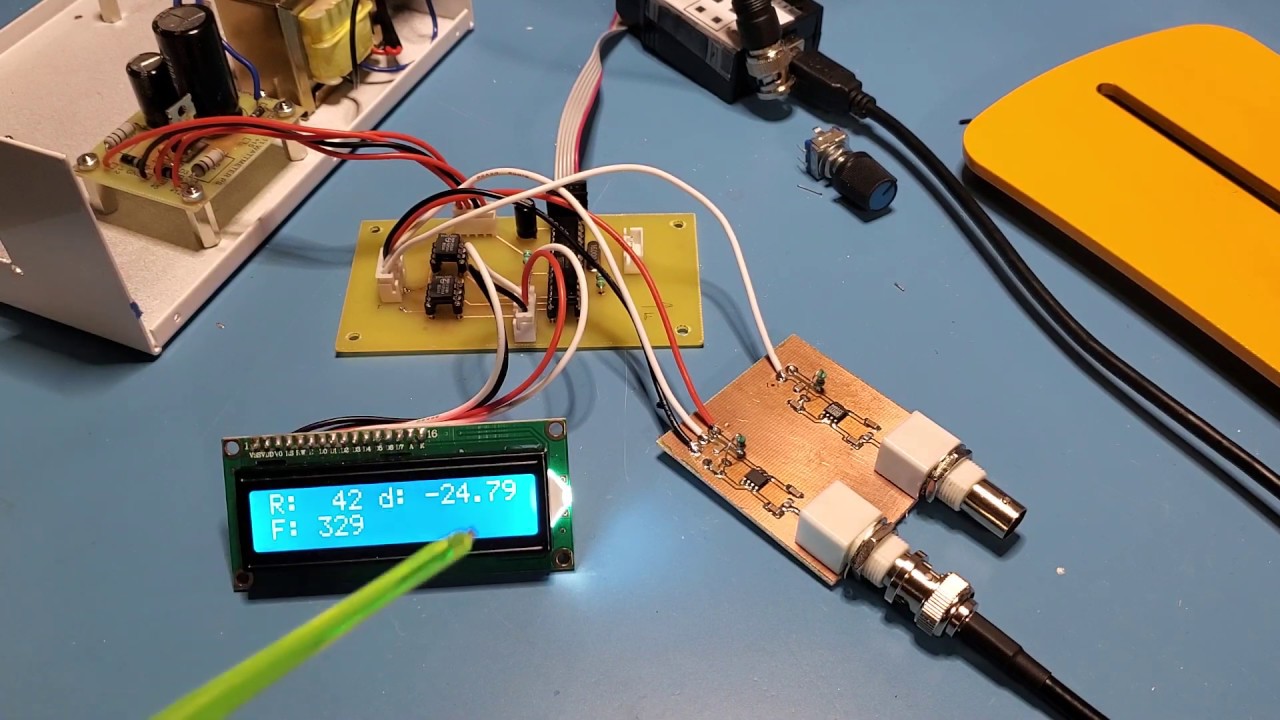

In this video the Reflected Channel AD8307 is installed and the code updated to display the value on the LCD. Also using this site

socscistatistics.com/tests/regression/default.aspx

The relationship between input power and analog pin value is derived

dbm = ( analogPin - 455.394 ) / 5.098

and displayed (only for forward power )

Just a note - I say "genuine" and "ebay" part. I don't *know* the ebay part isn't genuine - but its a tenth of the cost of the part I ordered from digikey.
