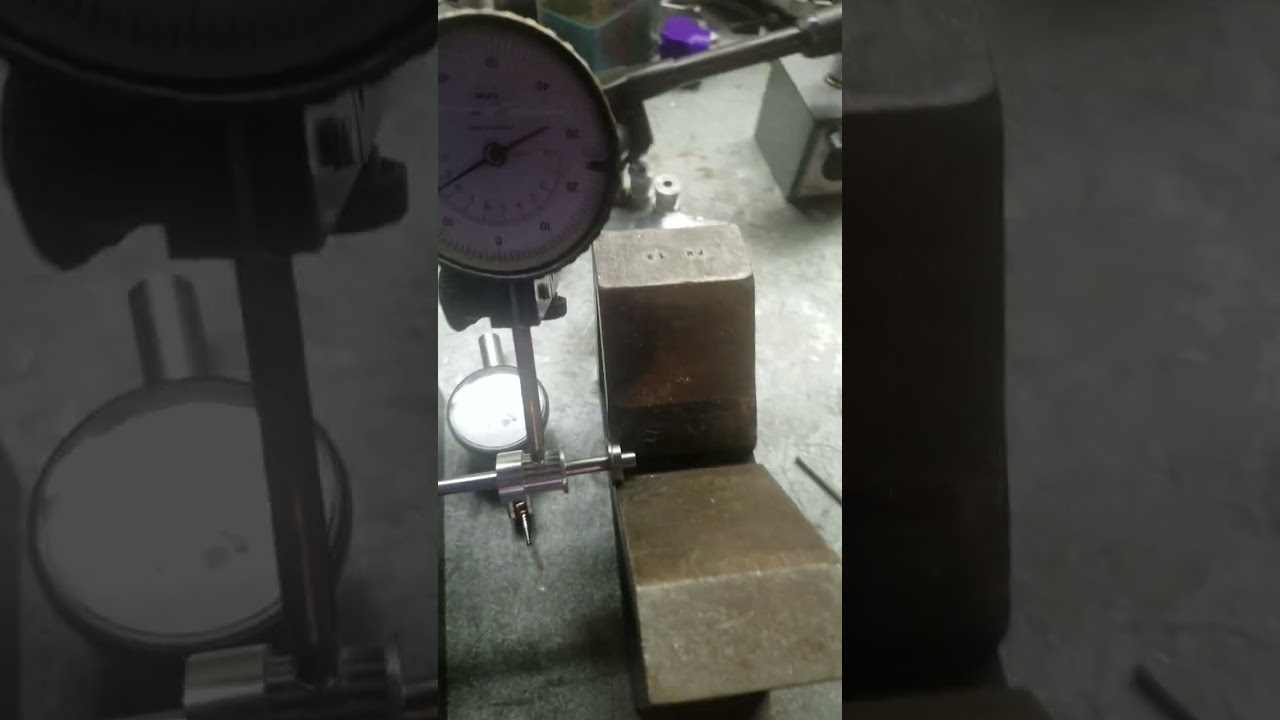

Easy to just show with this 1" travel indicator. Test indicator is more accurate, but you get the idea! Not a standard way to test. Just showing how crappy those cheap pulleys are!
I did a proper test with a test indicator. The gates was .0015". That Chinese pulley was .0085". It was one of the better ones I had.. tossed a few in the bin and drilled some out for other projects. Shafts were tested for run-out prior to test and were .0005" out. I had them spinning on bearings because I didn't want to make a few small V-blocks to do a proper test. Honestly, I don't care about .001" run-out.
Shafts were the bearing shafts from KB3D. Slightly larger than typical HSS 5mm shafts I buy. Much tighter! Even the pulleys are tight on the bore with loose set screws.
