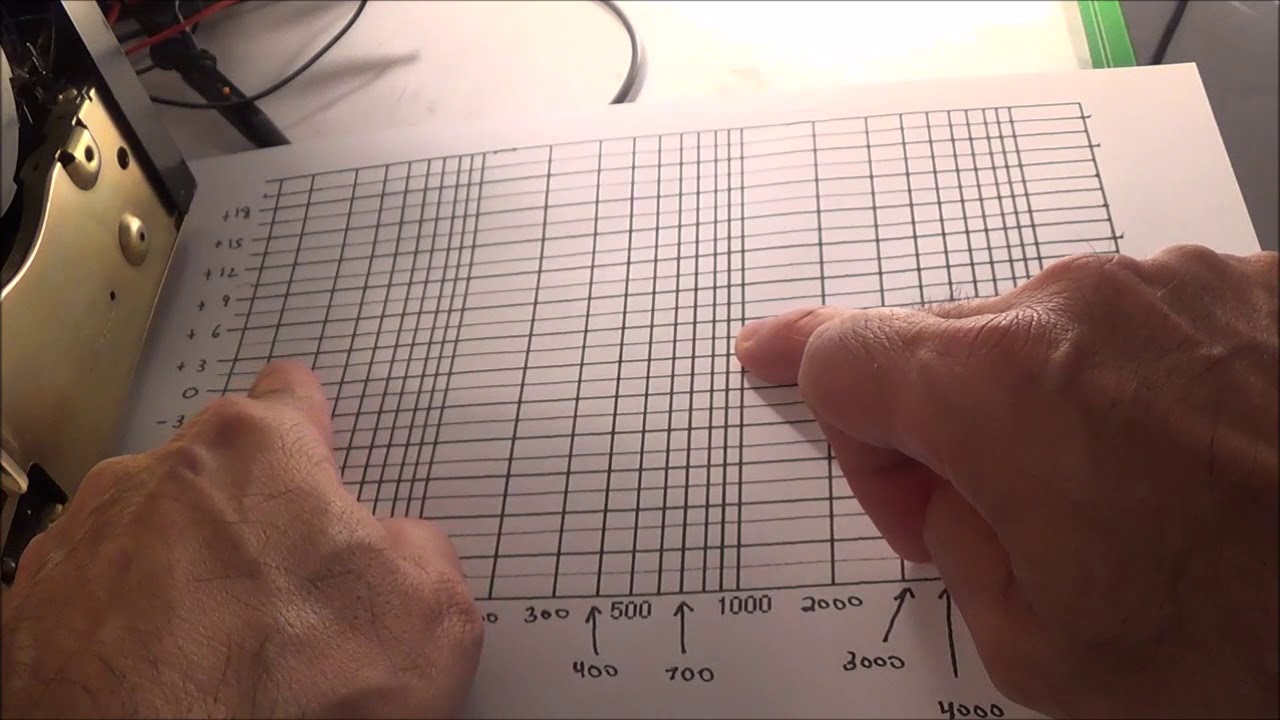

Unit basically performed as it should. Unit was connected to an 8-ohm dummy load; a dummy load was needed because the output voltages were measured at the receiver output.. A 150mV sine wave was fed into the aux input. In the video I say I was using the 3 volt range to measure the 150mV; it was actually the 300mV range. The volume control of the receiver was turned up until 2.8 volts (1 watt) was measured at the terminals of the dummy load. All tone controls were set to a flat (neutral position). The 1st reading was done with a 1,000Hz sine wave; this voltage reading was used as the reference. Unit was only down about 3 decibels at 100,000Hz, which was within specifications. One last test was done at about 70% of the maximum output (before clipping). For this the volume control was turned up until clipping, then turned down to 70% of maximum. This was at 1,000Hz. Theoretically all the tested frequencies should be done at this level also. The voltmeter used must have a good frequency response. An oscilloscope was used to monitor the waveforms. The test must be done for both the left and right channels.
