Uploaded October 2021 | Updated September 2026, 2 weeks ago

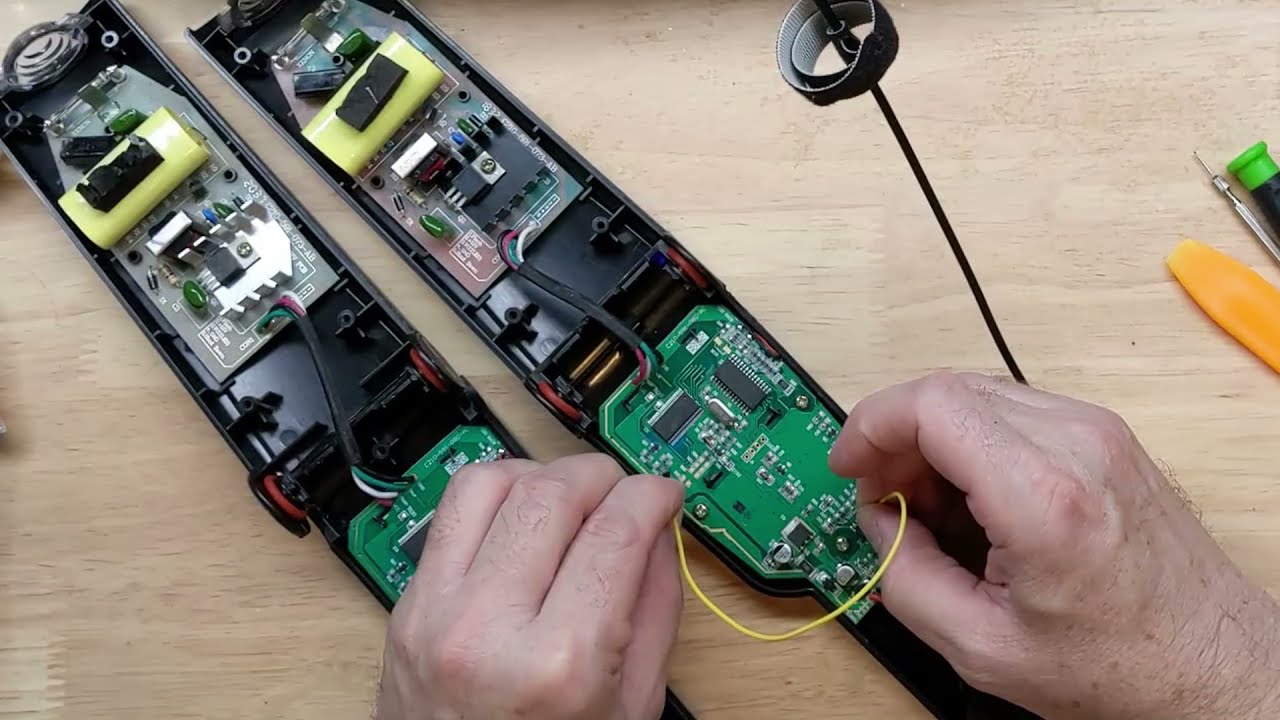

In this update video on the INNOVA timing light we get the opportunity to compare to a working light as well as look into jumping the signal to hopefully still use the timing light as a final effort since the Microcontroller is obviously hosed. Wanted to share that it seems to work well after doing this. Hope you find this helpful and thanks for watching!
