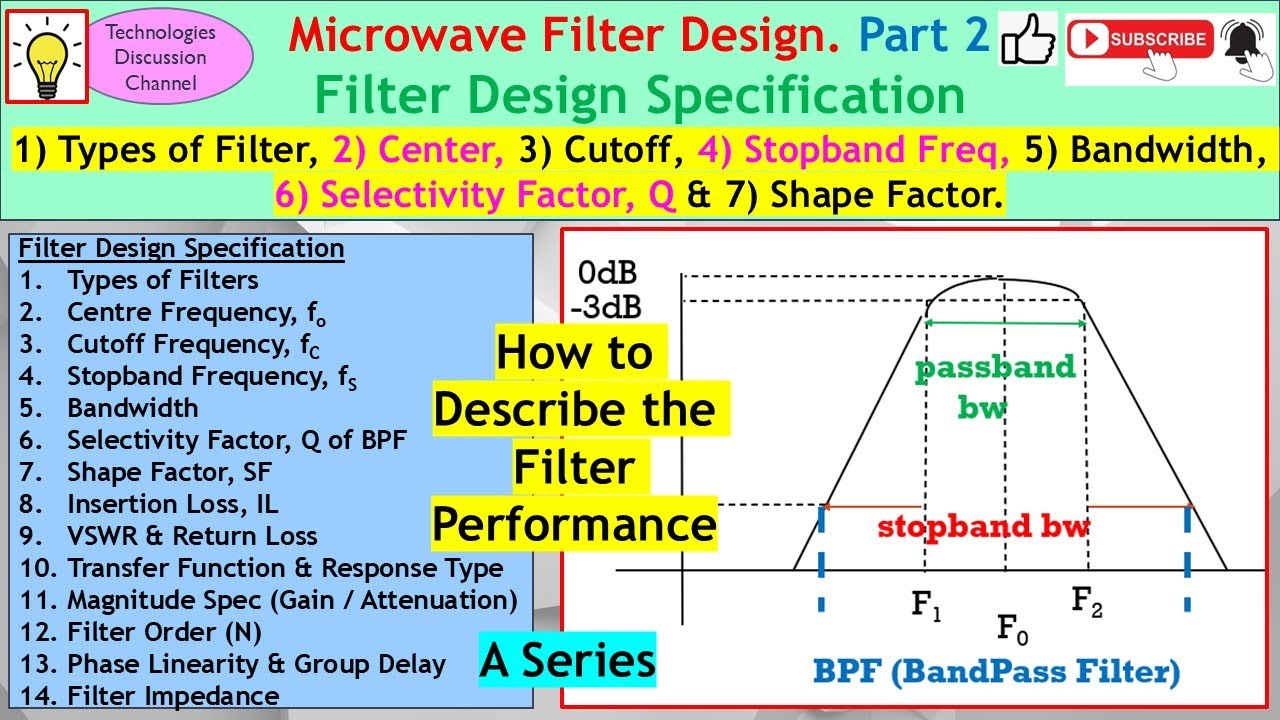

Filter Specification: (Center, Cutoff, Stopband) Freq, BW, Q & Shape Factor.
What is Filter Selectivity, BW & Shape Factor? Centre, Cutoff & Stopband Freq.
Filter Design Part 2. Specification: Center, Cutoff, Stopband Freq, BW, Selectivity Q & Shape Factor
Filter Design Part 2. Key Specs: Center & Cutoff Freq, Bandwidth, Selectivity, Shape Factor & More!
Filter Design Specification
Types of Filters
Centre Frequency, fo
Cutoff Frequency, fC
Stopband Frequency, fS
Bandwidth
Selectivity Factor, Q of BPF
Shape Factor, SF
Insertion Loss, IL
VSWR & Return Loss
Transfer Function & Response Type
Magnitude Spec (Gain / Attenuation)
Filter Order (N)
Phase Linearity & Group Delay
Filter Impedance
The center frequency (f₀) of a filter is the midpoint frequency in a bandpass or bandstop filter where the filter's response is either maximized (for bandpass) or minimized (for bandstop). It represents the geometric mean of the lower and upper cutoff frequencies.
BPF are geometrically symmetrical (normally).
Centre frequency of a filter always refer to the geometric centre
The cutoff frequency of a filter is the frequency at which the signal's power is reduced to half (-3 dB) of its maximum passband value. It marks the boundary between the passband (frequencies allowed through) and the stopband (frequencies significantly attenuated).
The stopband frequency of a filter refers to the range of frequencies that the filter is designed to attenuate (significantly reduce or block).
The stopband is the frequency range where the filter's response is below a specified attenuation level (e.g., -20 dB, -30 dB, etc.).
The bandwidth of a filter refers to the range of frequencies that the filter allows to pass through with minimal attenuation. It is typically defined as the difference between the upper and lower cutoff frequencies (also called corner frequencies) of the filter.
The Selectivity Factor (Q) of a filter is a measure of its frequency selectivity, indicating how sharply it can distinguish between desired and undesired frequencies. It is also known as the Quality Factor and is a key parameter in filter design, particularly in bandpass and bandstop filters.
The quality factor (Q) of the resonator is used to describe the selectivity of the filter and can be characterized as the frequency of the resonator divided by the bandwidth of the resonator.
The higher the Q (the "Quality"), the sharper the resonance is. Numerically, the Q-factor is the relation between center frequency and the -3 dB-bandwidth. In LC-resonant circuits it is also the relation between the L- and C-impedances and the damping or feeding resistor R.
The shape factor (also known as the selectivity factor or transition ratio) of a filter is a measure of how steeply the filter transitions from the passband to the stopband. It is commonly used in the context of bandpass and bandstop filters but can also apply to low-pass and high-pass filters.
