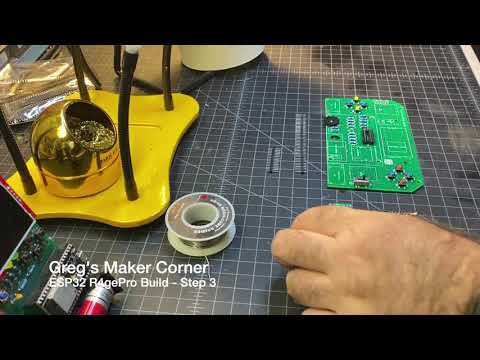

This video is part 3 of building for the ESP32 R4GE Pro conference badge. In this video, you will see how to properly cut pins, place and solder the pins, DAC, transistor, and breakout board.
For the introductory video and to see the badge in action, visit this link:
youtube.com/watch?v=nioAFUPfB2s&feature=emb_logo
For background on the badge, see this link:
twobittinker.com/esp32-pro-conference-badge
Expected price to source this: $50-60. There are a few nicer but pricier components (dac, speakers, etc.) that increase the cost, but we felt it was worth it.
For the detailed bill of materials and purchasing the badge, head over to this web site/ url:
github.com/DigiTorus86/ESP32-R4ge-Pro/blob/master/documents/Esp32_R4ge_Pro_BOM.ods
Github Repository:
github.com/DigiTorus86/ESP32-R4ge-Pro
To purchase the PCB, we recommend sourcing it from PCBWay. Gerber files are posted in the Github repository, and info is provided in the BOM.
You will also need to install Visual Studio Code (VS Code) and Platform IO to get this running.
VS Code:
code.visualstudio.com/download
Platform IO for VSCode install Info:
platformio.org/install/ide?install=vscode
If you have questions, please reply in the comments, or visit twobittinker.com and post your question there. Either Paul or I will attempt to get back to you.
