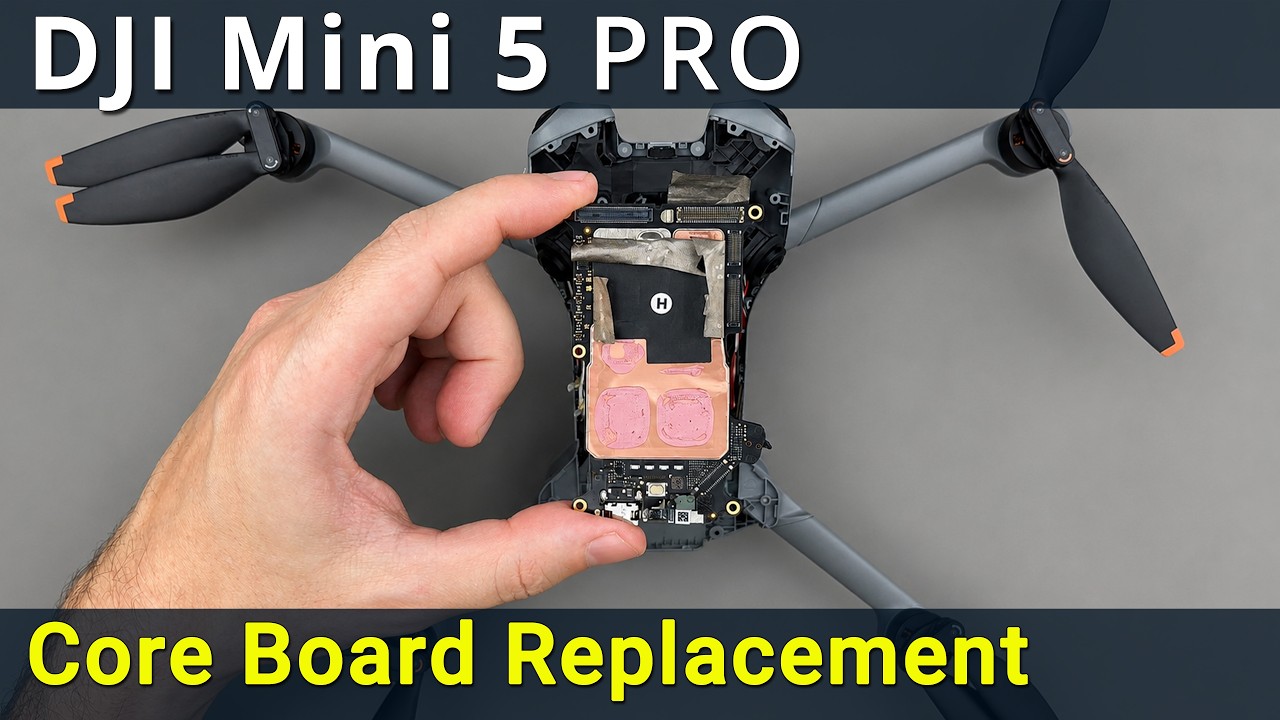

In this DJI Mini 5 Pro repair guide, I’ll show you how to remove and replace the core board, also known as the main board. This repair may help if your drone crashed, fell into water, does not power on, has no image transmission, or shows multiple errors such as IMU initializing, abnormal sensor, gimbal attitude error, arm-not-deployed warning, or unable to take off.
You’ll learn how to remove the upper cover, disconnect the antenna and gimbal signal cable, remove the heatsink, safely lift out the core board, and avoid damaging the folding arm detection switch. I’ll also explain how loose connectors, damaged sockets, corrosion, scratched traces, or board damage can cause several DJI Fly app errors at the same time.
This guide is also useful for water-damaged DJI Mini 5 Pro drones. I’ll show where to inspect the board for corrosion and explain when cleaning may help or when the core board may need replacement. For detailed water damage restoration, check my separate drone water damage repair guide linked below.
Subscribe to HowFixit for more DJI repair guides, teardown videos, and DIY tech repair tutorials.

🎬 Timecodes:
00:00 — DJI Mini 5 Pro core board repair overview
00:43 — Tools needed for DJI Mini 5 Pro disassembly
01:33 — Remove the upper body cover screws
02:45 — Open the top cover safely
03:39 — Disconnect the antenna cable
04:38 — Disconnect the gimbal signal cable
05:47 — Disconnect all cables from the main board
08:13 — Remove core board screws and heatsink
08:37 — Thermal paste and heatsink warning
08:48 — Separate the core board from the adhesive sheet
09:47 — Folding arm detection switch warning
10:24 — When the core board may cause multiple DJI Fly errors
11:19 — Water damage inspection and corrosion cleaning overview
11:55 — Reinstall the core board safely
12:30 — Reinstall heatsink and thermal interface
13:35 — Reconnect and secure all cables
14:36 — Adhesive options: RTV silicone vs hot glue
16:22 — Reconnect gimbal signal cable and bracket
17:20 — Install upper cover and antenna cable
18:54 — First test power-on and DJI Fly app check

🌟FAQ:
❓Question: Why does my DJI Mini 5 Pro show multiple errors at the same time?
✔️Answer: Multiple errors can be caused by a damaged core board, loose connector, damaged socket, corrosion, scratched trace, or a missing component on the main board.

❓Question: Can water damage cause IMU, gimbal, sensor, and image transmission errors?
✔️Answer: Yes. Water damage can affect connectors, sensors, board traces, and components, which may trigger several DJI Fly app errors at once.

❓Question: Do I need calibration after replacing the DJI Mini 5 Pro core board?
✔️Answer: Yes, core board replacement requires activation, controller relinking, DJI account binding checks, and professional calibration.
