Wiring to install aftermarket head unit including reverse signal, dimmer, and parking brake wiring.
Useful Links Below 👇

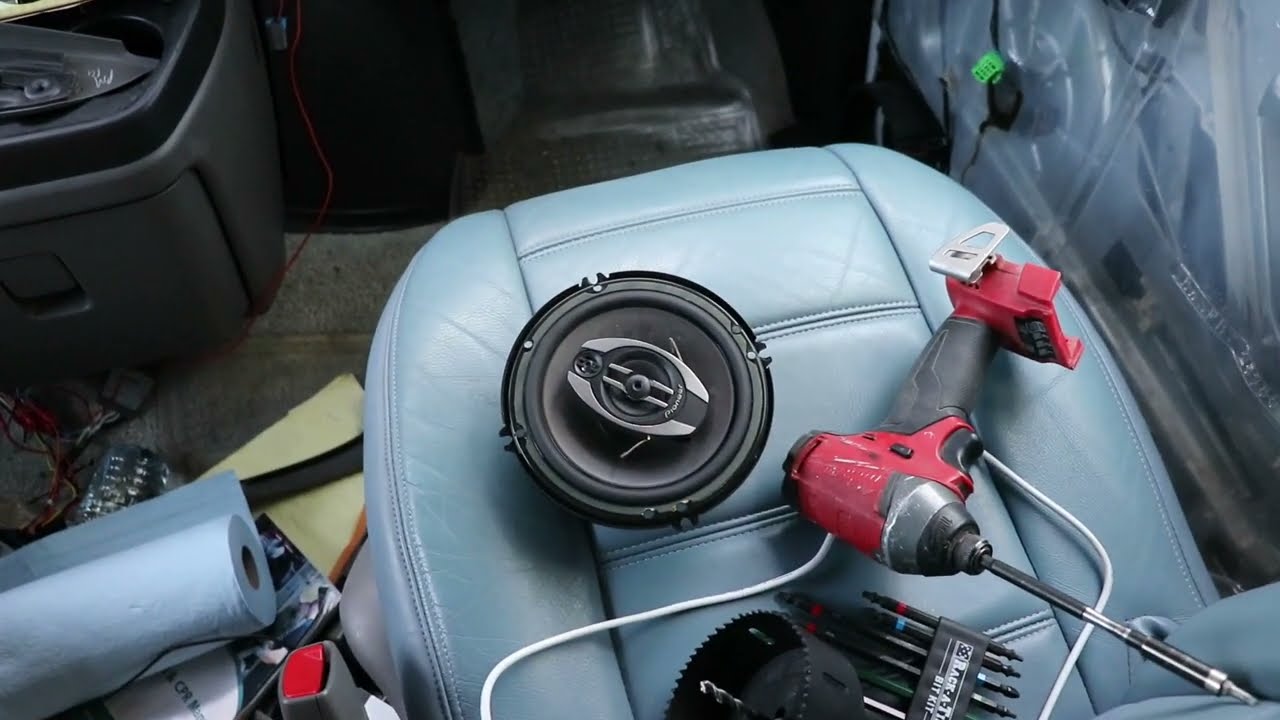

The interface did not seem to work with the reverse signal (I checked using a multimeter) so I went back to using the Body Control Module (BCM) for that signal. Changing front 6-1/2" speakers and replacing rear 4x6 speakers with 6x9s using speaker pods.
