CFD Simulation of Powder Directed Energy Deposition (DED)

Uploaded July 2024 | Updated September 2026, 1 week ago

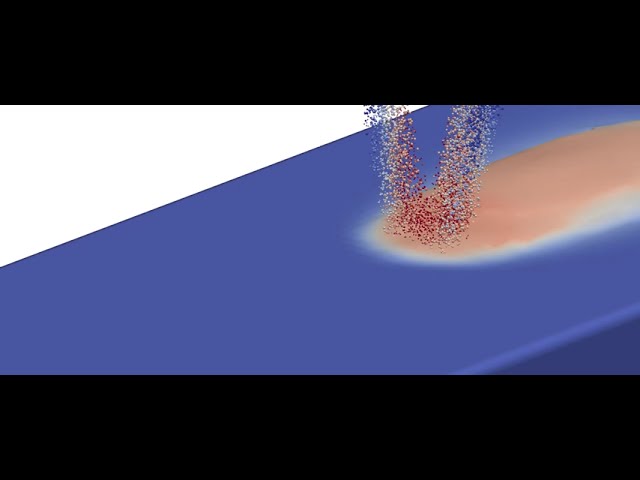

In this powder directed energy deposition (DED) simulation, two powder feed nozzles direct metal particles toward a laser source which heats them enough to liquefy. This leaves a single track of deposited material on top of a base plate. The animation is colored by temperature, with red being the hottest and blue being the coolest. To learn more about how FLOW-3D AM allows for full consideration of powder composition (up to two different materials), catchment efficiencies, build directions and laser and substrate orientation, visit flow3d.com/products/flow3d-am/.
