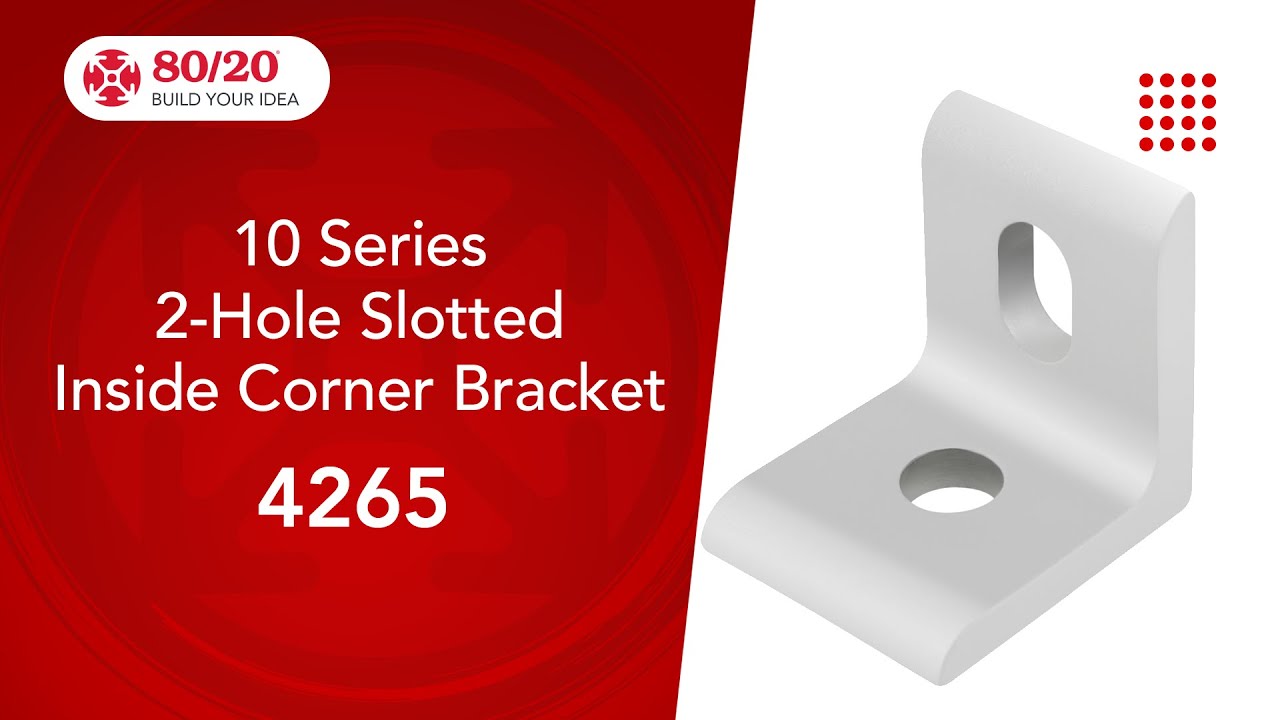

80/20: 10 Series 2-Hole Slotted Inside Corner Bracket (4265) @8020llc

Uploaded November 2024 | Updated September 2026, 1 week ago

To Purchase: bit.ly/4dFs5FB
Find in Catalog: bit.ly/428g7iZ
80/20 Website: bit.ly/3peM7n3

The 2-hole slotted inside corner bracket is an external fastening method that creates a 90 degree connection. The slotted hole allows for greater adjustability between the connecting profiles. This bracket requires no machining services and can provide infinite positioning along the profile T-slot. The 2-hole slotted inside corner bracket engages the 2-degree drop-lock feature when the assembly bolts are tightened to the required torque. It is a fastening method that can be repositioned and reused.
