240 LED Animated PWM-controlled Christmas Tree @vk2zay
240 LED Animated PWM-controlled Christmas Tree  @vk2zay
Uploaded December 2009 | Updated November 2026, 3 hours ago

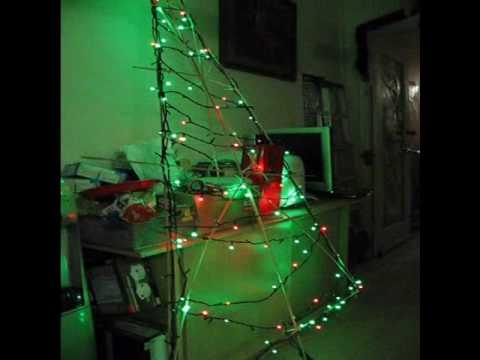

240 LED Animated PWM-controlled Christmas Tree. vk2zay.net/article/231 Seen here at its first testing lash-up. Uses 2N7000 MOSFETs and an Atmel ATtiny13 MCU controlling the 4 PWM channels using a byte-coded animation script.
