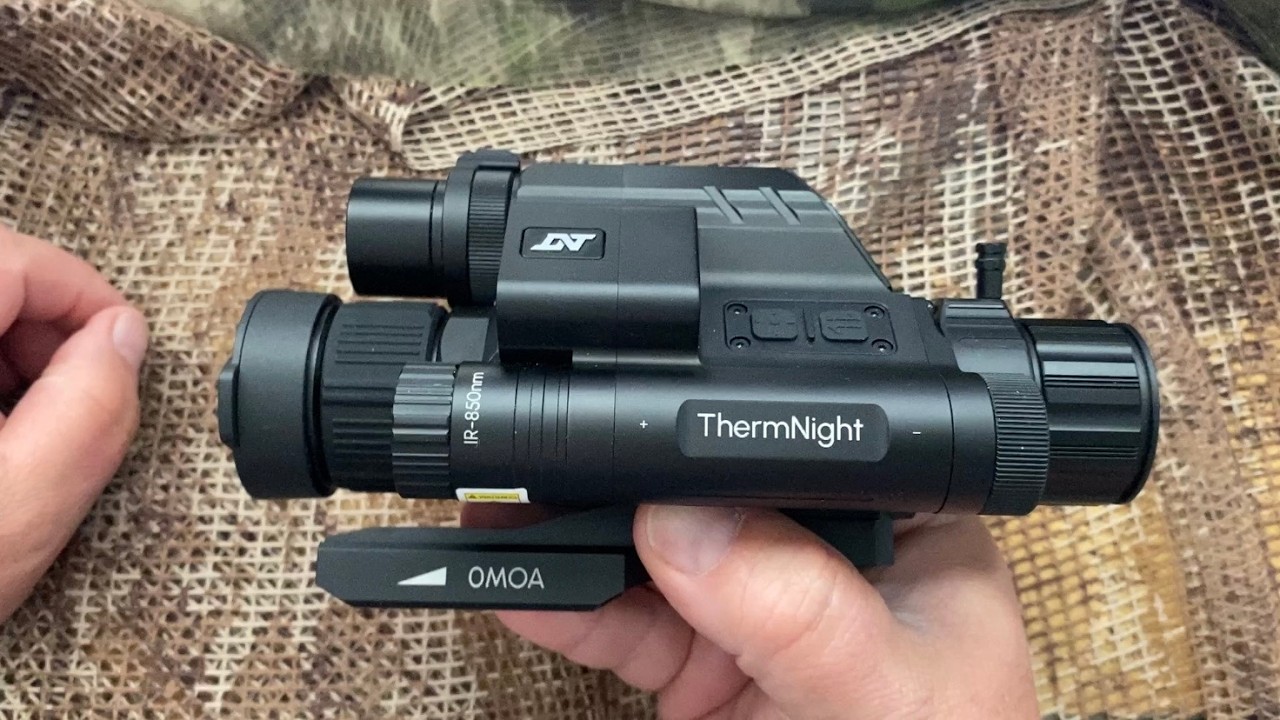

Thinking about grabbing one? Use the code below and support future testing. For the DNT Multispectral optic, use code REX for 10% OFF your DNT unit: us.dntoptics.com/aqa8yF
If this video helped you, join us for the REAL conversation on Patreon patreon.com/c/tiborasaurusrex 50+Your EXCLUSIVE POSTS per month. Your support helps us to conduct more REAL testing.
NUC (non uniformity correction) resets the optic due to thermal drift which occurs when temperature changes inside the microbolometer sensor array alter the resistance (conductivity) of the sensing pixels, causing their baseline outputs to shift until NUC recalibrates them.
What is actually happening (clean model)
1. Sensor physics
• Most scopes use uncooled microbolometers.
• Each pixel changes resistance based on incoming IR and its own temperature.
• As the unit warms, each pixel drifts slightly differently.
2. Drift problem
• This creates fixed-pattern noise and image bias.
• That is what people perceive as “image shifting” or “drift.”
3. NUC function
• The system periodically forces a known reference (often a shutter).
• It recalculates offsets so all pixels align again.
• This is a reset, not a continuous correction.
4. Warm-up phase
o Rapid internal temp change → more drift → more NUC events.
5. Steady-state
• Once thermally stable, drift rate slows.
• NUC frequency can decrease, but never goes to zero.
For a typical 640×512 uncooled microbolometer thermal optic, the optic usually warms internally by roughly 10°F to 30°F above room temperature during the first warm-up period. From a 70°F room, seeing the housing or internal core region climb into the 85°F to 105°F range is normal. Smaller sealed weapon optics can feel noticeably warm because the processor, display, battery circuit, and sensor package are all trapped in a compact housing.
Typical warm-up rate:
Time after power-on
Expected behavior
First 30 seconds - Image appears, but calibration is still moving
1 to 5 minutes - Fastest internal heating and most drift/NUC activity
5 to 15 minutes - Heating slows; image becomes more stable
20 minutes - Best temperature stability for thermal sights
Environmental Thermal Equilibrium Lag
Scenario: optic stored at 29°F brought into 50°F (+21°F step)
Internal Temperature Rise Behavior (Lag Time)
Typical response (sealed weapon optic):
0–1 min, +5°F to +10°F, rapid surface warming
1–5 min, +10°F to +18°F, steep gradient across internals
5–15 min, approaches ambient, stabilization phase
15–30 min, within ~±2°F of ambient, equilibrium
