What is Super Node in Nodal Analysis ? #allaboutelectronics @ALLABOUTELECTRONICS

Uploaded May 2026 | Updated September 2026, 3 weeks ago

In this short video, the concept of Super Node is explained.

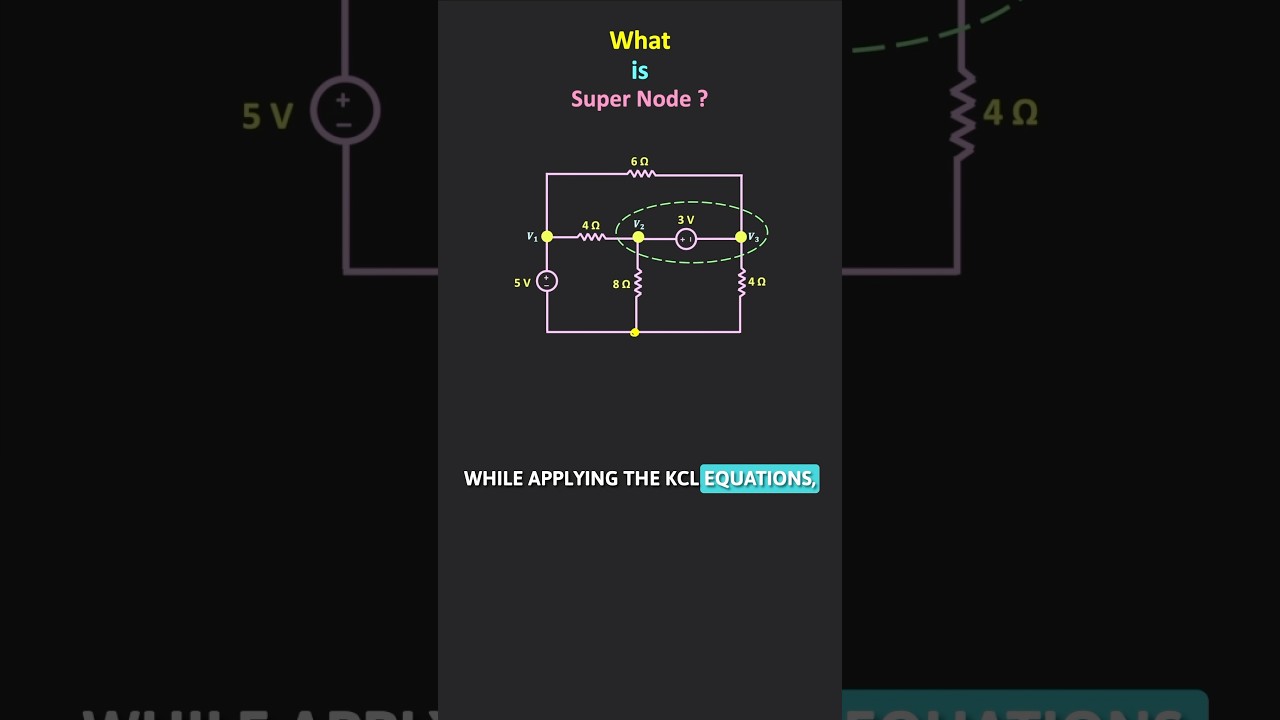

What is Super Node ?
When the ideal voltage source (independent or dependent voltage source) exist between the two non-reference nodes in the circuit, then those two nodes can be considered as a single node. And such node is know as a single node.

*For more information, check this video on Super Node:*
youtu.be/iIswDPKSQT4?si=sooaNIw1tghO0Lk7
