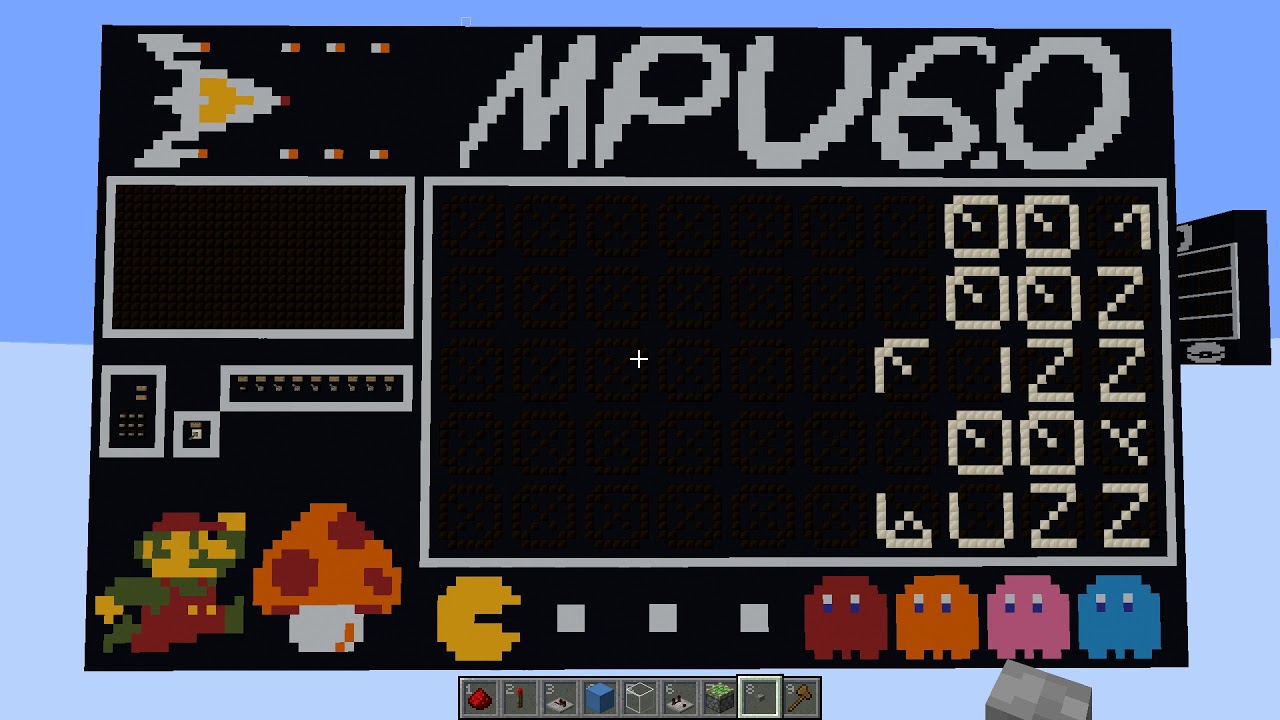

This is running a Fizzbuzz program which was written in URCL which was then compiled into mpu6 assembly.
For Fizzbuzz the URCL version ran roughly 57% slower than the equivalent program written natively in mpu6 assembly.
MPU6.0 Specs:
5 tick clock speed (0.5 seconds)
4 stage pipe (with dual instruction fetching to speed up conditional instructions)
8 bit word length
uses a custom version of VLIW arch
10 general purpose registers
32 bytes of RAM
128 word instruction ROM (split into 2 lots of 64 for dual fetching)
8 bit hardware multiplier
32 bit BCD converter
16x8 Pixel Display
10x5, 8 Segment Char Display (using the MPU-64 character set)
