Ultrasound Tone Burst Spatiotemporal Pressure Measurement @vk2zay
Ultrasound Tone Burst Spatiotemporal Pressure Measurement  @vk2zay
Uploaded March 2021 | Updated November 2026, 3 hours ago

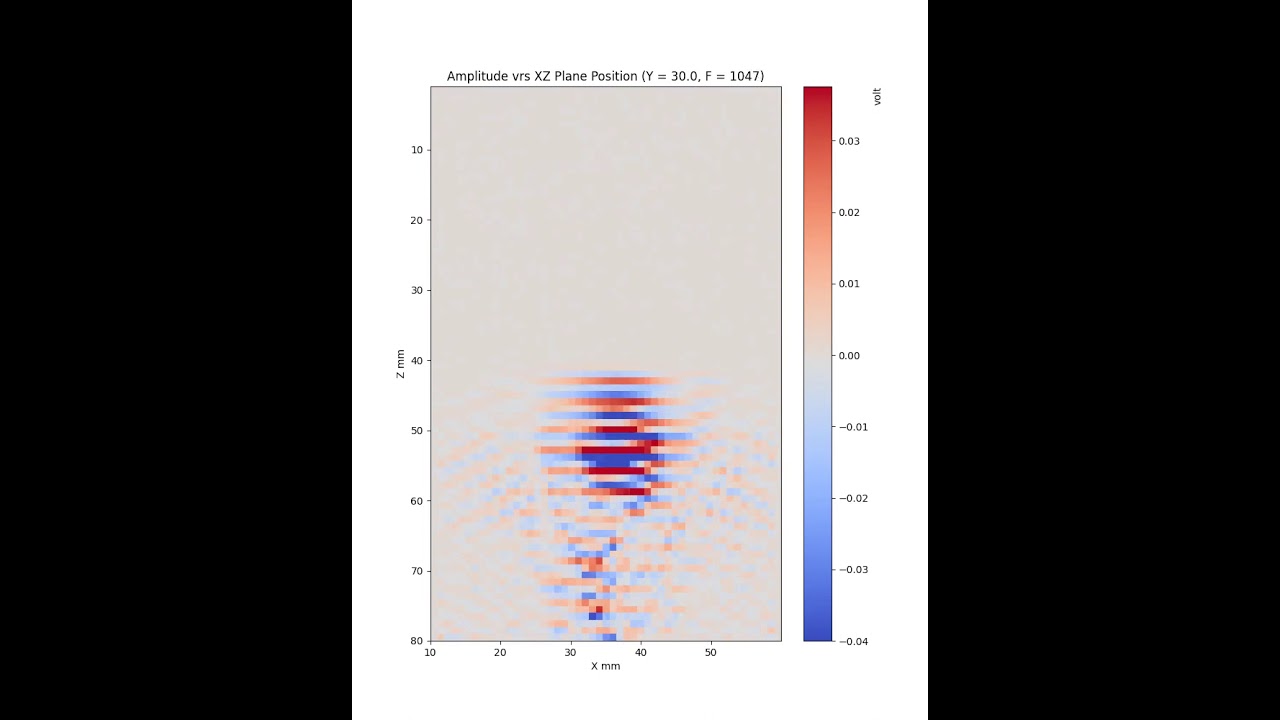

Somewhat spatially aliased by the 1 mm sampling resolution this is a video of a 5-cycle 1 MHz tone burst (and the ring-down) from a 20 mm planar ultrasonic transducer propagating in degassed water. The data has been reduced to 50 million frames per second but was acquired at 500 million frames per second.
