Tube Time - The Buffer/Impedance Matching Circuit @CoolDudeClem
Tube Time - The Buffer/Impedance Matching Circuit  @CoolDudeClem
Uploaded December 2020 | Updated November 2026, 1 hour ago
This is a bit embarrassing, I had this on my hard drive for a few days and forgot to upload it! Anyway this little device takes the output from any high impedance device and converts it to a relatively low impedance, all using tubes of course!

00:00 - Intro
00:28 - What I'm going to do
01:15 - Power Supply Schematic
03:03 - More of what I'm going to do
03:23 - Starting work on the power supply
03:33 - Finnished power supply

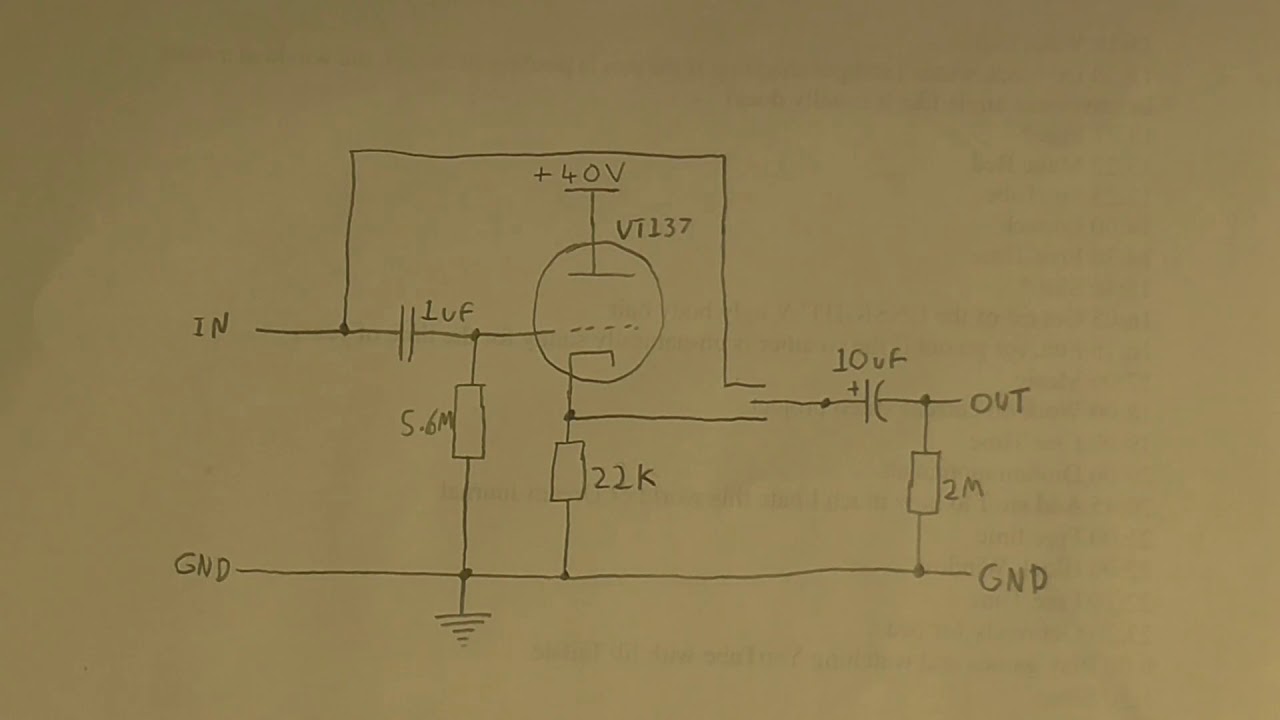

04:02 - Buffer Schematic
04:56 - The thing now built
05:18 - Making sure the tubes light up
05:50 - Testing with audio
07:59 - Direct hookup, comparing audio though the tubes and directly
09:03 - Changing the filament voltage drop resistors
10:48 - A few clean power chords

Yes I know the picture is upside down towards the end. I have my tripod mounted to the ceiling so I can do overhead shots and I used that same tripod to film the guitar bit (and obviously the camera would be upside down here) and I forgot to flip it right way up during editing!
